Parts of Heat Pump Air Conditioner: A Homeowner Guide

Core concept: how parts enable heating and cooling

A heat pump air conditioner moves heat rather than generating it, using a collection of parts that work in concert to deliver heating in cool weather and cooling in warm weather. Understanding these core components helps homeowners anticipate maintenance needs and plan for repairs or upgrades. In this guide, we break down each part and explain its role in comfort and efficiency. According to Heatpump Smart, knowing the parts first makes troubleshooting simpler and safer for non professionals.

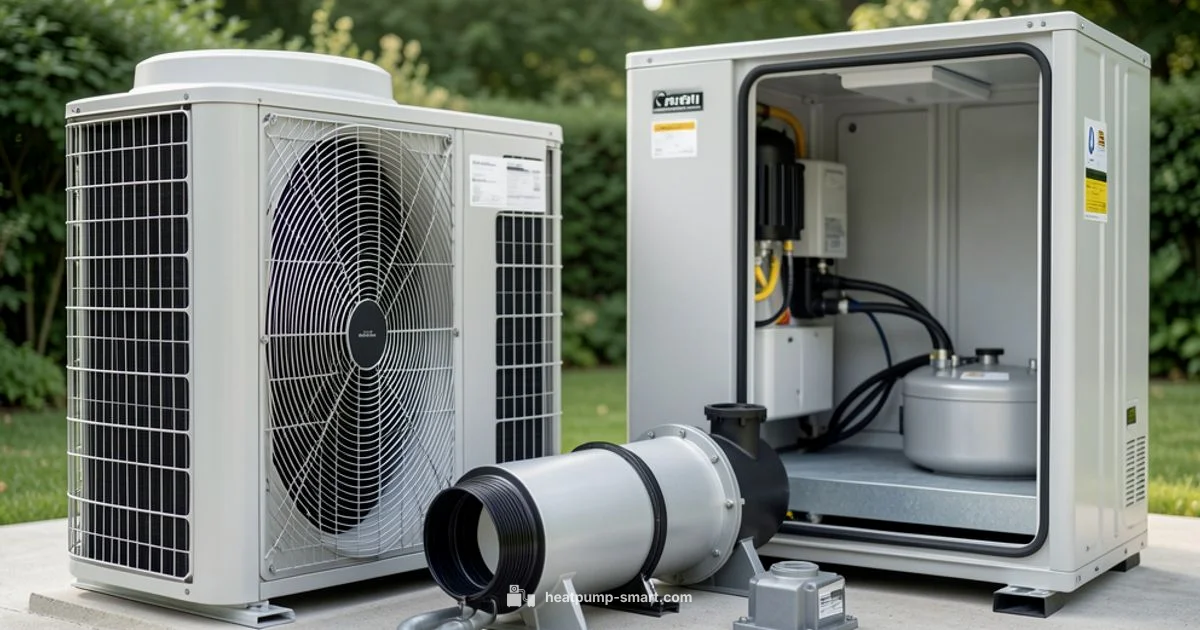

• Outdoor condensing unit (compressor, condenser coil, and fan)
• Indoor air handler or evaporator coil
• Refrigerant lines and insulation
• The reversing valve for mode switching
• The thermal expansion or metering device
• Control electronics and sensors

Outdoor unit and condenser components

The outdoor unit houses the primary heat transfer components, including the compressor, condenser coil, and the fan. The compressor compresses refrigerant, raising its pressure and temperature, so heat can be moved. The condenser coil releases heat to the outside air during cooling mode or absorbs heat from outside in heating mode. The outdoor fan moves air over the coil to improve heat exchange. The enclosure protects these parts from weather while still allowing ventilation. Efficiency depends on clean coils, proper refrigerant charge, and unobstructed airflow. Keeping the outdoor unit free of debris and ensuring adequate clearance improves performance substantially. In some configurations, multiple outdoor units or a compact single unit may be used depending on capacity. Understanding outdoor components helps you plan service and seasonal performance.

Indoor air handler and evaporator coil

The indoor unit contains the evaporator coil, the fan, and often a control module. In cooling mode, the evaporator absorbs heat from indoor air; the blower pushes air across the coil and into living spaces. In heating mode, the cycle reverses, and the indoor coil helps release heat inside the home. The air handler may include filters and diffusers; a dirty filter reduces airflow and efficiency. Materials like copper tubing and aluminum fins maximize heat transfer, while some systems use variable speed blowers for better humidity control. The indoor unit also houses sensors that communicate with the thermostat to maintain target temperatures and comfort. Regular filter changes and coil cleaning are essential for sustained performance.

The heart of the system: compressor and reversing valve

The compressor is the heart of the heat pump, circulating refrigerant through the system and driving heat transfer. In heating mode, refrigerant carries heat from outside to inside; in cooling mode, it removes heat from inside to outside. The reversing valve switches the flow of refrigerant to alternate modes. These components work with the outdoor coil and indoor coil to enable efficient heat exchange. A variable speed compressor improves efficiency and reduces noise compared with a fixed speed unit. If you hear unusual grinding or short cycling, it may signal issues with these core parts. Regular professional checks help ensure proper lubrication and electrical connections.

Refrigerant lines and metering devices

Between the outdoor and indoor units, refrigerant travels through insulated copper tubes. Sealed and well insulated lines minimize energy loss. The expansion device or metering device controls how much refrigerant enters the evaporator coil, regulating temperature and pressure for efficient operation. Leaks or blockages can reduce cooling or heating performance and may cause frost on outdoor coils. Refrigerant handling should always be performed by a licensed technician due to safety and environmental considerations. Periodic inspection of line insulation and connections is part of good maintenance practice.

Controls, sensors, and electrical safety

Modern heat pumps rely on a network of controls, thermostats, and sensors to manage operations. The control module coordinates start and stop, fan speeds, and mode switching; sensors monitor indoor temperature, outdoor conditions, and refrigerant pressures. Proper wiring and secure electrical connections prevent safety hazards and improve reliability. Upgrading to a smart thermostat can enhance efficiency by optimizing run times. Regular checks of low voltage wiring, fuses, and circuit breakers help catch issues before they cause downtime. Heatpump Smart emphasizes professional wiring and charging to ensure safe operation and code compliance.

System configurations and how parts vary by installation

Air source heat pumps, split systems, and multi zone configurations share core parts but differ in layout and controls. In single zone setups, the indoor unit coordinates with a single outdoor unit. In multi zone systems, separate indoor units connect to a common outdoor unit, with zone dampers and independent thermostats. In all cases, the same fundamental components exist, but sizing and wiring differ. When planning replacements or upgrades, consider existing ductwork, insulation, and electrical capacity. The refrigerant type and valve configurations can vary by model and region. Heatpump Smart advises homeowners to consult a professional to confirm compatibility with your home’s electrical system and climate conditions.

Maintenance practices to protect the parts

Regular maintenance is essential for preserving the efficiency and longevity of heat pump parts. Start with filter changes and coil cleaning to maintain airflow and heat transfer. Schedule annual professional inspections to verify refrigerant charge, electrical connections, and capacitor health. Clear debris from around the outdoor unit and check the condensate drain to prevent water damage. Clean or replace air filters monthly or per manufacturer guidance. Keep the system aligned with a reliable thermostat schedule to reduce runtime and wear on components. Heatpump Smart notes that a proactive maintenance routine reduces emergency repairs and sustains comfort.

Troubleshooting parts related symptoms

If you notice poor cooling performance, frost on the outdoor coil, unusual noises, or a sudden rise in energy use, these symptoms may point to specific parts. Frost on the outdoor coil can indicate refrigerant issues or reduced airflow; buzzing or grinding noises could signal a failing compressor or motor bearing. If indoor airflow is weak, inspect the air filter and blower. A malfunctioning reversing valve may cause the system to stay in one mode. For suspected refrigerant problems, contact a licensed technician immediately; refrigerant handling requires specialized training. The goal is to identify the likely culprit without risking safety or further damage. Document symptoms and schedule service promptly to minimize downtime and maintain efficiency.
