What is a Heat Pump Air Handler and How It Works

What is a heat pump air handler

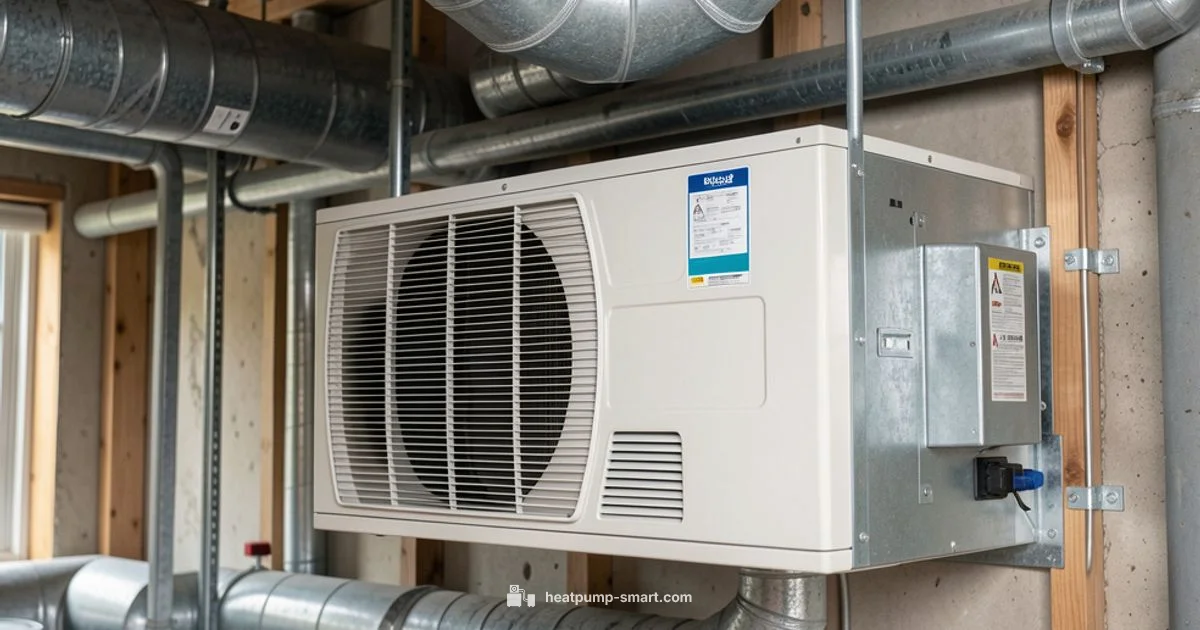

If you are asking what is heat pump air handler, you should think of it as the indoor half of an air source heat pump. It is the cabinet that contains the blower (the fan that moves air) and the evaporator coil, plus access to the duct connections that carry conditioned air to living spaces. In a typical home, the air handler sits in a utility closet, attic plenum, or basement and works alongside the outdoor condenser and the refrigerant lines to transfer energy from outside to inside, or vice versa. The key point is that the air handler does not generate heat by itself; it circulates air and facilitates heat exchange performed by the refrigerant in the system. The indoor unit also includes an air filter to clean incoming air, a condensate drain to remove humidity, and electrical connections to power and controls. The combination of a properly sized air handler and a matched outdoor unit determines how efficiently and quietly the system can heat and cool. Finally, a modern air handler emphasizes energy efficiency, good airflow, and minimal static pressure so that the entire system performs well across weather conditions. According to Heatpump Smart, the indoor unit should be designed to work with your climate, house size, and insulation level to deliver steady comfort and savings.

How the air handler fits into a heat pump system

A heat pump system relies on the indoor air handler to circulate air through the ducts while the outdoor unit handles energy transfer via refrigerant. The indoor unit connects to the same refrigerant loop as the outdoor condenser, controlled by the thermostat. When cooling, the outdoor unit absorbs heat from inside and the air handler pushes cooled air through the home. When heating, the cycle reverses and the air handler distributes warm air generated by the indoor evaporator coil after the refrigerant absorbs heat from outdoors. The efficiency and performance hinge on accurate matching of the indoor air handler with the outdoor unit and the ductwork, ensuring the system delivers consistent comfort while minimizing energy use.

Key components inside the air handler

Inside the cabinet you will typically find the blower wheel and motor, the evaporator coil, an accessible air filter, a condensate drain pan, and connections for power, thermostat, and refrigerant lines. Some models include an electronically commutated motor for variable speed control, which helps manage airflow quietly across different zones. The air filter protects the evaporator coil from dust and debris, while the drain pan and a properly sloped drainage line manage humidity. The alignment between the air handler, the ductwork, and the outdoor unit is crucial for preventing air leaks and reducing noise. The goal is smooth airflow with minimal static pressure so that the system can respond quickly to calls for heating or cooling without strain.

How heating and cooling cycles use the air handler

During heating and cooling cycles, the air handler’s blower moves air across the evaporator coil, where refrigerant absorbs or releases energy as it circulates. In cooling mode, the evaporator coil removes heat from indoor air, which is then expelled outdoors by the outdoor unit. In heating mode, the cycle reverses and the indoor coil releases heat into living spaces. The air handler also doubles as a filter station, removing dust and allergens from return air. A well-tuned blower speed and properly sized ductwork ensure balanced air distribution and consistent temperatures across rooms. Temperature changes feel faster with an efficient air handler, and less demand on the outdoor unit can reduce wear over time.

Sizing, installation, and layout considerations

Sizing the air handler involves more than counting rooms. It must align with the outdoor condenser’s capacity, the duct design, and the home’s design heat load. A poorly sized air handler can create hot or cold spots and increased humidity. Installation location matters too; a central, accessible space with adequate clearance helps service access and reduces noise. Return air pathways should be designed to balance supply and return, avoiding restricted airflow. Proper vibration isolation, duct sealing, and fan selection help minimize operational noise. Finally, ensure electrical power, thermostat compatibility, and freeze protection are addressed by a licensed professional to protect the system’s longevity and efficiency.

Maintenance and common issues

Maintenance is a key driver of long term performance. Regularly inspect and replace the air filter as recommended by the manufacturer, typically by monthly checks and as needed for pets and dust levels. Keep the evaporator coil clean and free of debris, and have ducts inspected for leaks that waste energy. Watch for ice buildup on the evaporator coil or unusual noise from the blower, which can indicate airflow restrictions or a failing motor. Periodic professional inspections should cover refrigerant charge, electrical connections, and overall system balance. Early detection of issues minimizes comfort loss and energy waste.

Choosing a heat pump air handler for your home

Selecting the right heat pump air handler involves matching the indoor unit to the outdoor condenser and your home’s ductwork. Look for energy efficiency features, such as variable speed blowers that improve comfort and reduce noise. Consider warranty length, service availability, and compatibility with smart thermostats for precise control. The indoor unit should fit the available space and leave room for service. For homeowners and builders, a licensed installer can verify refrigerant compatibility, electrical requirements, and proper airflow. Remember that the best results come from a system designed as a cohesive package rather than components chosen in isolation. The Heatpump Smart team emphasizes that proper matching between indoor and outdoor units leads to longer life and steady savings.

Authority sources

Energy and system design recommendations come from nationally recognized sources. For more information, consult:

• https://www.energy.gov/energysaver/heat-pumps
• https://www.energy.gov/energysaver/heat-pump-installation
• https://www.epa.gov/iaq/misunderstandings-about-heat-pumps
