Guide to Geothermal Heat Pumps: A Practical Home Guide

Why Geothermal Heat Pumps Matter for Home Comfort and Energy Efficiency

Geothermal heat pumps leverage the constant underground temperature to move heat between your home and the earth. In heating mode, the system extracts heat from the ground using a loop field and transfers it into the home; in cooling mode, the process reverses, removing heat from the home and returning it to the ground. This mechanism avoids burning fossil fuels and reduces peak heating loads on your furnace or electric resistance heat.

A properly designed geothermal system can deliver stable comfort across seasons, with less temperature swing than air-source heat pumps in extreme climates. The earth acts as a natural energy reservoir, smoothing out daily weather fluctuations and enabling more efficient operation of the compressor and fan. Because most homes have insulation and sealing improvements, the combination of a geothermal loop and a well-sized heat pump can maintain comfortable indoor temperatures with smaller equipment and lower energy use.

For homeowners, the long-term economics depend on several factors: local climate, soil or rock properties, lot size, and the loop configuration chosen by your installer. While upfront costs can be higher than traditional systems, the added energy savings and potential incentives often make geothermal a compelling option over a 10- to 20-year horizon. According to Heatpump Smart, geothermal systems perform best when paired with a well-insulated building envelope and thoughtful thermostat strategy.

How Geothermal Heat Pumps Work: Ground as a Heat Battery

Geothermal heat pumps use a closed-loop or open-loop configuration to circulate a working fluid (usually a specialized antifreeze mixture) through underground loops. In winter, the fluid extracts heat from the earth and delivers it to the indoor coil; in summer, the process reverses, absorbing indoor heat into the loop. The heat pump then upgrades or rejects this heat to maintain comfort.

Key loop configurations include horizontal trenches, vertical boreholes, and pond/lake loops. Horizontal loops are cost-effective on larger lots with stable soil; vertical loops require less surface area but involve drilling costs. Open-loop systems pull groundwater from a well and return it to the environment after heat exchange, which can offer efficiency gains in suitable geology. The choice among these options depends on site conditions, local regulations, and long-term maintenance considerations.

In all cases, a properly sized unit and a correctly designed loop field are essential. A geothermal system’s efficiency is often expressed as COP (coefficient of performance) and cooling EER; these metrics improve when the loop is well-integrated with your home’s insulation, air sealing, and modern zoning controls. Heatpump Smart’s analysis emphasizes that the ground’s stable temperature can significantly reduce energy swings and operation costs when paired with modern controls.

Siting, Loop Options, and System Sizing

Site assessment is the foundation of a successful geothermal installation. A licensed installer evaluates soil composition, groundwater, available land area, and existing utility channels to determine the best loop type, depth, and layout. Sizing should be based on a detailed load calculation that accounts for insulation levels, window performance, occupancy, and equipment efficiency. Oversized or undersized systems can compromise comfort and efficiency, so precision matters.

Loop options fall into several categories: horizontal closed loops laid in trenches, vertical closed loops drilled into boreholes, and open loops using groundwater. Each option has distinct upfront costs, long-term maintenance, and environmental considerations. In colder climates, a larger loop field or deeper boreholes may be needed to maintain performance during peak heating.

The right configuration also interacts with the indoor distribution system. A well-designed geothermal system works with efficient ducts, zone controls, and a programmable thermostat to maximize comfort and minimize energy waste. The result is steadier indoor temperatures, quieter operation, and a lower carbon footprint when compared to many conventional systems.

Costs, Incentives, and Financial Considerations

Upfront costs for geothermal heat pump projects vary widely depending on loop configuration, soil conditions, drilling or trenching requirements, system capacity, and installation complexity. While pricing can be higher than traditional HVAC setups, many homeowners see meaningful long-term savings through reduced energy consumption and lower maintenance costs. Financial viability improves with incentives.

Incentives can include state or local rebates, federal tax credits, utility-sponsored programs, and manufacturer rebates. The availability and amount of incentives depend on location and current policy, so it is essential to check with local authorities and your installer early in the planning phase. A well-documented site assessment and a transparent contract help maximize incentives and minimize surprises later in the project. For many homes, the total cost is recouped through energy savings and increased home value over time.

Heatpump Smart analysis shows that the most favorable outcomes occur when geothermal systems are paired with a tight building envelope, modern thermostats, and smart zoning that targets comfort where it matters most. This holistic approach often reduces the payback period and enhances occupant satisfaction.

System Types: Closed-Loop, Open-Loop, and Hybrid Options

The majority of geothermal installations use closed-loop systems, where a continuous loop carries a heat-exchange fluid to and from the ground. Closed loops can be horizontal, vertical, or pond/lake-based, with vertical loops offering a space-efficient solution for urban lots. Open-loop systems use groundwater directly, exchanging heat with the water before returning it to the source, and can deliver high efficiency when geology allows.

Hybrid systems combine geothermal with supplemental heating or cooling sources to address extreme conditions or to meet high loads during peak periods. Each configuration has trade-offs in terms of cost, maintenance, energy savings, and environmental impact. An experienced installer will assess site conditions and climate to recommend the best option for your home and long-term goals.

Effective geothermal design considers not only the heat pump model but also distribution strategy, refrigerant charges, and control schemes. A holistic approach helps you maximize efficiency, minimize lifecycle costs, and ensure comfort across seasons.

Installation Timeline and What to Expect

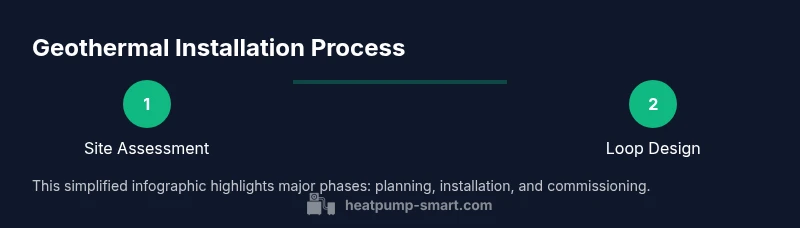

A geothermal installation is typically staged: design and permitting, loop field installation, heat pump placement, system connection, and commissioning. Timeframes depend on site conditions, weather, and permits, but planning often spans several weeks to a few months. Groundwork may require drilling or trenching, followed by PEX or HDPE piping installation and pressure testing. The heat pump, condensate management, and ductwork integration occur after the loop is verified.

During the process, homeowners should expect modest disruption—especially outdoors. A good contractor communicates milestones, expected weather delays, and inspection checkpoints. Proper coordination with excavators, piping specialists, and HVAC technicians minimizes delays and ensures the system is balanced for the home’s load profile. After commissioning, technicians tune controls and verify efficiency under typical operating conditions.

Maintenance, Longevity, and Troubleshooting

Geothermal systems are renowned for durability and minimal maintenance when properly installed. Regular checks should focus on loop integrity, refrigerant levels, thermostat calibration, and air handling components. Filters should be replaced on schedule, and any unusual noises or temperature swings should be investigated promptly. Because the loop field is buried, seasonal inspections can help detect leaks or pressure deviations early.

Most geothermal systems last several decades with routine maintenance. The heat pump unit itself typically carries a substantial warranty, and the loop field, if installed correctly and protected from damage, remains reliable over many years. Annual or biannual professional servicing helps preserve efficiency and prevent performance declines as seasons change. Monitoring energy bills and system performance can reveal small drifts before they become noticeable comfort issues.

Common Myths About Geothermal Heat Pumps

Myth: Geothermal systems are only cost-effective in new homes. Reality: They can be retrofit successfully with proper planning and an experienced installer. Myth: They require extensive yard disturbance. Reality: Modern loop designs minimize surface disruption, especially with vertical bore solutions. Myth: Geothermal systems are loud and noisy. Reality: The equipment is typically quiet due to underground heat exchange and modern sound-dampening designs. By debunking myths, homeowners can make informed decisions based on site realities rather than assumptions.
