Ecobee Wiring Diagram for Heat Pumps: Step-by-Step Guide
A practical, safety-focused guide to wiring an ecobee thermostat for heat pumps, detailing terminal mappings, configuration tips, and troubleshooting for reliable, energy-saving operation.
Learn how to wire an ecobee thermostat to a heat pump, including translating wire colors to R, C, Y, O/B, and Aux/E, plus safety checks and setup steps. This quick answer outlines compatibility basics and essential preparation before you begin. We'll cover common pitfalls, what tools you’ll need, and how to verify power and signals safely.
Why wiring ecobee with a heat pump matters
Wiring a smart thermostat for a heat pump isn’t just about turning a dial. It ensures the heat pump’s compressor, reversing valve, auxiliary heat, and fan operate in harmony with your home’s comfort needs. An accurate wiring diagram for ecobee devices helps lock in energy savings, reliable heating and cooling, and faster diagnostics if something goes wrong. According to Heatpump Smart, proper wiring starts with confirming system compatibility and then mapping the terminal functions clearly before you touch any wires. This foundational step reduces the risk of damage to the thermostat or outdoor equipment and makes future maintenance easier. Homeowners, builders, and property managers benefit from a clear wiring plan that accounts for single- or multi-stage heat pumps, O/B valve orientation, and the ecobee model’s supported features. In the remainder of this guide, you’ll find practical, field-tested guidance that aligns with expert best practices and Heatpump Smart Analysis, 2026 insights on safe wiring and performance optimization.
Understanding heat pump wiring fundamentals
Heat pumps rely on several electrical signals to control components inside the outdoor unit and inside the air handler. The R wire provides 24-volt power, C completes the circuit, Y calls for cooling, G runs the fan, and the O/B lead controls the reversing valve. Aux/E, sometimes labeled Aux or Emergency Heat, supplements heating when temperatures dip or when the outdoor unit can’t keep up. Unlike conventional furnaces, heat pumps require correct O/B orientation to switch between heating and cooling modes. Most ecobee thermostats support heat pump configurations, but you must verify that your model and the outdoor unit wiring diagram align. Additionally, ensure the 24-volt supply is stable and that any external breakers or disconnects are accessible and labeled. This section builds the foundation for accurate wiring and reliable operation, setting expectations for what comes next in the mapping and configuration steps. Heatpump Smart’s guidance emphasizes safety and precision in every wiring decision.
Mapping ecobee terminals to heat pump components
A clean wire map reduces guesswork during installation. Typical ecobee wiring for a heat pump includes R for power, C for common, Y for the compressor signal, G for the fan, O/B for the reversing valve, and Aux/E for auxiliary heat. Some setups also use Y2 or Aux2 for multi-stage systems. Start by labeling the existing wires at the air handler or furnace control board. Confirm the outdoor unit diagram to ensure the reversing valve lead is O or B as appropriate for your climate and equipment. Double-check that the ecobee supports the required configuration (single stage, dual stage, or heat-pump only). If your system lacks a C wire, you’ll need to install one or use Heatpump Smart-recommended power sharing options only if your ecobee model supports them. By laying out each wire-to-terminal mapping clearly, you reduce the risk of miswiring and subsequent faults.
Tools, safety, and prep steps before wiring
Before touching any wires, gather the essentials and lock out power to both the indoor air handler and outdoor condenser. A non-contact voltage tester saves you from surprise shocks, and a small flat-head or Phillips screwdriver helps secure terminals. Have a wire stripper, electrical tape, and spare wire in case you need to extend or re-label conductors. If you’re replacing an old thermostat, take a photo of the existing connections for reference. Confirm the ecobee model supports heat pump configurations with O/B and Aux/E. Keep the outdoor unit disconnect accessible in case you need to disable it for service. High-quality, labeled wires reduce the risk of cross-connecting signals and make post-installation testing straightforward. Heatpump Smart’s recommendations stress documenting every change for future maintenance and diagnostics.
Ecobee configuration basics
After wiring, power up the system and open the ecobee setup wizard. Select Heat Pump with Aux/E and set the reversing valve to the correct O/B orientation for your climate. Confirm that the Y terminal is connected to the compressor and that C supplies steady power. The ecobee setup will ask about fan control (G), auxiliary heat, and the outdoor compressor status. If your heat pump uses single-stage operation, configure Y and O/B accordingly; for dual-stage, follow the ecobee prompts to enable Y1, Y2, and corresponding Aux/E connections. Finally, run a test cycle in both heating and cooling modes to verify proper valve operation, airflow, and temperature response. Heatpump Smart’s industry perspective notes that this configuration yields better efficiency and comfort, with fewer post-install repair visits when wiring is accurate.
Common mistakes and troubleshooting tips
Common missteps include mixing up O and B wires, mislabeling C and R, or skipping the C wire entirely. An incorrect O/B setting can cause the heat pump to heat in cooling mode (or vice versa), wasting energy and triggering safety limits. If the thermostat shows C-wire not detected or power issues, recheck wiring at both ends and confirm the outdoor unit wiring diagram. Loose connections are a frequent cause of intermittent operation, so tighten terminal screws and re-seat wires. When troubleshooting, start at the thermostat and work backward to the air handler and outdoor unit. Keep logs of voltages, breaker's status, and any error codes, and consult the ecobee compatibility guide if a feature isn’t behaving as expected. Heatpump Smart’s guidance underscores testing sequence and documentation to minimize guesswork.
Safety, maintenance, and professional help
Safety is non-negotiable when working with live HVAC wiring. Always switch off the primary breaker and verify absence of voltage before touching conductors. Use a multimeter to verify continuity and ensure that every contact is secure. If you encounter unfamiliar wire colors, unusual terminal labels, or your system has additional stages or a separate zone controller, seek professional help. A certified HVAC technician can confirm compatibility, verify the outdoor unit wiring, and finalize the setup to ensure year-round reliability. For homeowners and property managers, investing in a professional review reduces risk and protects your equipment. The Heatpump Smart team recommends documenting every change and keeping a copy of the wiring diagram for future service and upgrades.
Authority sources and quick-reference wiring map
For those who want quick, authoritative guidance beyond this guide, refer to: Energy.gov resources on thermostat basics and heat pump efficiency, the Energy Star thermostat page, and industry standards from ASHRAE. These sources provide foundational wiring conventions and safety considerations that align with best practices in the field. Always compare your wiring against the ecobee model’s official wiring diagram and your heat pump outdoor unit diagram. The following quick-reference map is a starting point: R to R, C to C, Y to Y, G to G, O/B to O/B, Aux/E to Aux/E. If you encounter a mismatch between your equipment and ecobee prompts, pause, recheck, and consult a professional. Heatpump Smart Analysis, 2026 reinforces the value of careful preparation and validation before powering up the system.
Authority sources
- https://www.energy.gov/eere/buildings/thermostats
- https://www.energystar.gov/products/heating_cooling/thermostats
- https://www.ashrae.org/resources--publications
Tools & Materials
- ecobee thermostat (heat-pump capable model)(Ensure model supports O/B, Aux/E, and C-wire options)
- Non-contact voltage tester(For confirming power is off before touching wires)
- Wire stripper and small screwdriver set(Used to prepare conductors and secure terminals)
- Color-coded thermostat wires (R, C, Y, G, O/B, Aux/E)(Have spare length in case you need to extend conductors)
- Electrical tape or wire nuts(Secure and insulate wire connections)
- Labeling supplies (masking tape, marker)(Label wires at both ends for clarity)
- Multimeter (optional but helpful)(Check voltages and continuity when diagnosing issues)

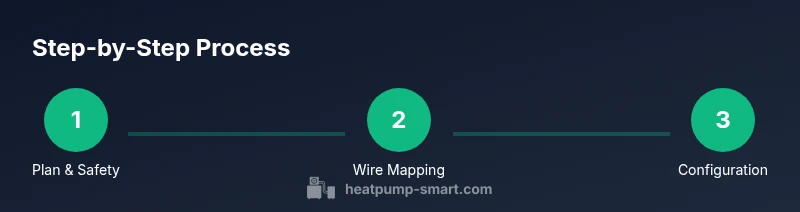

Steps
Estimated time: 45-75 minutes
- 1
Power down and verify
Turn off the circuit breakers for the thermostat and the outdoor heat pump. Use a non-contact tester to confirm that there is no voltage present on any thermostat wires before you touch them. This initial safety check prevents shocks and equipment damage.
Tip: If you’re unsure, wait for a professional to verify power before proceeding. - 2
Label existing wires
In the air handler or furnace, photograph and label every wire connected to the old thermostat. Note which wire goes to R, C, Y, G, O/B, and Aux/E. Clear labeling helps you map each conductor to the correct ecobee terminal later.
Tip: A photo log saves time if labels fade or become unreadable after years of use. - 3
Prepare the ecobee wall plate
Remove the old thermostat and mount the ecobee base. If you don’t have a C wire, consider using an ecobee PEK accessory or alternative power strategy only if your model supports it. Ensure the wall box can accommodate the ecobee’s power requirements and that the wiring route to the air handler is clear.
Tip: Check that the wall opening is clean and free of dust to ensure a secure fit. - 4
Connect power and signals
Connect R from the air handler to the ecobee R terminal, C to C, Y to Y, G to G, O/B to O/B, and Aux/E to Aux/E. Make sure the wire ends are clean and snug under each terminal screw. If a wire doesn’t reach, do not force it; instead, extend with an appropriate gauge conductor.
Tip: Double-check the O/B wire is in the correct orientation for your climate (O opens in cooling, B opens in heating in some systems). - 5
Power up and run the ecobee wizard
Restore power and follow the ecobee setup wizard. Choose Heat Pump with Aux/E, configure the O/B reversing valve correctly, and confirm that the fan and compressor signals respond as expected in both heating and cooling modes.
Tip: If the ecobee can’t detect a wire or shows a fault, re-seat the terminals and verify the wire color coding. - 6
Test and validate
Run at least two cycles in heating and cooling, observing temperature changes, airflow, and outdoor unit activity. Look for the expected sound and vibration levels and make sure there’s no unusual humming or clicking that might indicate a loose connection.
Tip: Keep a log of any error codes and document the final wiring configuration for future reference.
Your Questions Answered
What wire colors map to ecobee terminals on a heat pump?
The typical mapping is R to R, C to C, Y to Y, G to G, O/B to O/B, and Aux/E to Aux/E. Always confirm with your outdoor unit diagram and ecobee’s compatibility notes.
Map the wires to the ecobee terminals according to the standard R, C, Y, G, O/B, and Aux/E layout and verify with the unit’s diagrams.
Can I wire a heat pump with ecobee without a C wire?
Most ecobee models require a C wire for reliable operation. If your existing wiring lacks a C wire, you may need an adapter or a qualified installer to run a new conductor.
A C wire is typically needed for stable power; if you’re missing it, consult a pro before proceeding.
What should I do if the ecobee shows c-wire not detected?
Power down, re-seat the C wire at both ends, and verify the wire is continuous. If the warning persists, verify the C terminal on the air handler and the ecobee.
Turn off power, re-seat the C wire, and check continuity; if unresolved, call a pro.
Is it safe to DIY wire a heat pump thermostat?
DIY wiring can be safe if you have basic electrical confidence and follow safety steps. If you’re unsure about any step, hire a licensed HVAC technician to avoid equipment damage or electrical hazards.
DIY can be safe with caution, but don’t hesitate to get professional help if unsure.
Do I need to set reversing valve to O/B on ecobee?
Yes. In the ecobee setup, specify O or B depending on your system’s valve and climate. Incorrect setting can cause heating and cooling to perform opposite to expectations.
Set the correct O/B orientation in ecobee during setup.
What are common signs of incorrect wiring?
Symptoms include no power to the thermostat, erratic temperature changes, the outdoor unit failing to start, or the heat pump running in the wrong mode. Revisit wire mapping and check connectors.
Look for no power, odd cycles, or wrong mode operation; verify wiring and re-test.
Watch Video
Top Takeaways
- Verify compatibility before wiring to avoid compatibility issues
- Map wires accurately: R, C, Y, G, O/B, Aux/E
- Use the ecobee setup wizard to configure heat pump with aux heat
- Test cycles in heating and cooling and log any codes
- Prioritize safety and document changes for future maintenance
