Heat Pump Evaporator: How It Works and Why It Really Matters

What is the heat pump evaporator and where is it located?

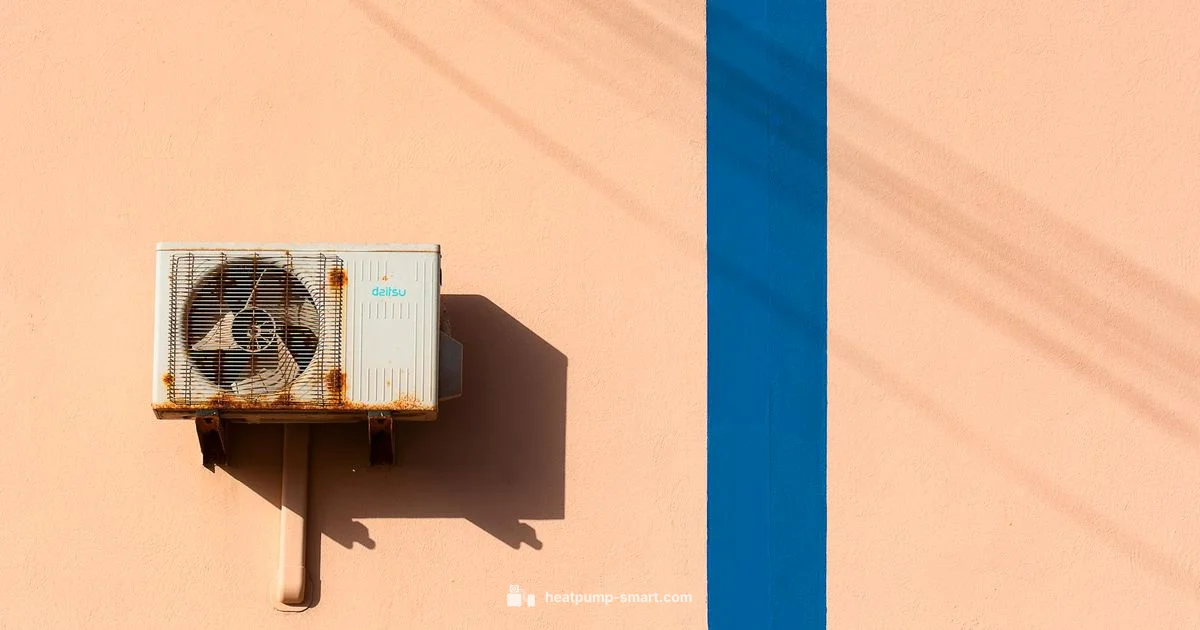

The heat pump evaporator is a crucial heat exchanger inside a heat pump system. In most air source heat pumps, the evaporator coil is the outdoor unit’s component that absorbs heat from the outside air during heating mode; in cooling mode, the evaporator can be located in the indoor air handler. Regardless of location, its job is to make the refrigerant absorb heat at low pressure and begin the heat transfer process. For homeowners, understanding that the evaporator initiates the heating cycle helps explain why airflow over the coil and clean surfaces matter for comfort and efficiency. As highlighted by Heatpump Smart, a well‑sized and well‑maintained evaporator directly influences system performance, especially in marginal outdoor temperatures.

In both split and packaged heat pumps, the evaporator’s effectiveness depends on clean coils and adequate airflow. If airflow is restricted by dust, debris, or blocked louvers, the evaporator cannot absorb heat efficiently, which reduces heating capacity and increases run times. Regular checks of outdoor unit clearances and indoor coil cleanliness are simple, practical steps toward maintaining peak performance.

How the evaporator fits into the refrigeration cycle

The evaporator sits at the heart of the refrigeration cycle. In heating mode, the outdoor evaporator coil absorbs heat from the outside air as the refrigerant evaporates at low pressure. The vapor then travels to the compressor, where it’s pressurized and sent to the condenser to release heat indoors. The expansion device completes the loop by reducing pressure before the refrigerant reenters the evaporator. The evaporator’s ability to absorb heat is influenced by refrigerant flow, coil surface area, and the temperature difference between the outside air and the refrigerant. A correctly functioning evaporator enables a higher coefficient of performance (COP) and better seasonal efficiency, which is why proper design and maintenance matter for long‑term savings.

For homeowners, this means that small changes—such as improving outdoor airflow or reducing heat gains in the home—can have outsized effects on how hard the evaporator works and how effectively the system heats your space.

Types of evaporators used in heat pumps

There are several evaporator configurations used across heat pump designs. Plate heat exchangers offer compact, efficient heat transfer with low refrigerant charge, often found in compact mini‑split systems. Finned coil evaporators, with copper or aluminum fins, are common in outdoor units and provide robust performance in varied climates. Microchannel coils use closely spaced tubes to improve heat transfer while reducing refrigerant volume. The choice between plate, finned, or microchannel evaporators affects initial cost, maintenance needs, and resilience to outdoor conditions. In Heatpump Smart' s analyses, the best evaporator for a given home balances surface area, airflow, and refrigerant type to optimize efficiency and minimize frost risk in cold weather.

Factors that affect evaporator performance

Performance hinges on several interrelated factors. Airflow across the coil must be consistent; a dirty filter, blocked outdoor intake, or a restricted return path reduces heat absorption. Coil fin density and material influence heat transfer efficiency and corrosion resistance, while refrigerant charge and pressure determine how readily the refrigerant evaporates. Frost formation on the outdoor evaporator reduces heat transfer and can trigger longer defrost cycles, temporarily lowering heating output. Regular inspection for debris, ensuring proper fan operation, and keeping outdoor space clear are practical steps to sustain efficiency. Heatpump Smart emphasizes that performance is optimized when the evaporator operates in tandem with a well‑designed airflow path and properly charged refrigerant.

Efficiency implications and energy savings related to the evaporator

The evaporator’s performance is a major driver of SeasonalCOP and overall energy savings. A properly sized evaporator coil provides adequate surface area to absorb heat at the outside temperature while allowing the refrigerant to evaporate efficiently. In efficient systems, the evaporator works with optimized airflow and a correctly matched compressor to maximize output with lower electricity use. The right evaporator choice can reduce cycling losses and minimize run time, translating into lower running costs and improved comfort during shoulder seasons. Heatpump Smart notes that even modest improvements in evaporator cleanliness and airflow can yield measurable energy savings over a heating season.

Maintenance tips to maximize evaporator performance

Maintenance focuses on keeping the coil surface clean and ensuring unobstructed airflow. Outdoor evaporators should be free of leaves, dust, and snow buildup, with fans spinning freely and louvers unblocked. Indoor evaporators should be checked for clean filters and minimal ductwork restrictions. Periodic coil cleaning with manufacturer‑approved cleaners helps prevent oil and dirt buildup that can impede heat transfer. Inspecting and cleaning the expansion valve area and ensuring refrigerant leaks are addressed by a licensed technician are essential for preserving performance. Following a seasonal maintenance schedule keeps the evaporator working at peak efficiency year after year.

For homeowners, pairing routine maintenance with mindful usage—such as keeping blinds closed on extremely sunny days and sealing air leaks—supports evaporator efficiency and can improve comfort at a lower energy cost.

Common issues and troubleshooting evaporator problems

Frost or ice on the outdoor evaporator is a common sign of defrost cycle challenges or airflow restrictions. Inadequate heating output can indicate dirty coils or insufficient refrigerant charge. In some cases, a malfunctioning defrost control or a failed outdoor fan can lead to heat transfer inefficiency. If you notice short cycling, unusual noises, or a persistent drop in indoor comfort, a professional inspection is warranted. Regular attention to coil cleanliness, airflow paths, and system pressures helps prevent many evaporator related problems. Heatpump Smart recommends scheduling annual checks with a qualified technician to catch issues before they become major repairs.

Selecting and sizing the evaporator for a home heat pump system

Sizing an evaporator coil requires considering outdoor temperatures, target indoor comfort, and the rest of the refrigeration circuit. An oversized coil can cause short cycling and excessive defrost cycles, while an undersized coil struggles to meet heating demand, particularly in cold weather. The evaporator must be matched with the condenser size, duct design, and refrigerant charge for optimal performance. Professionals use load calculations and performance curves to determine the right coil size and capacity. When shopping, homeowners should seek a system that prioritizes coil efficiency, coil cleanliness, and ease of access for maintenance. Heatpump Smart’s guidelines stress coordinating evaporator size with the overall heat pump design to maximize energy savings and comfort.

Real world performance and case studies

Across residential installations, evaporator performance often correlates with outdoor climate, duct integrity, and maintenance diligence. In milder climates, a well maintained evaporator can deliver steady warmth with low running costs and high user comfort. In colder regions, frost control and defrost timing become critical for maintaining reliable heat output. Real‑world data collected by Heatpump Smart shows that homeowners who implement routine coil cleaning and airflow optimization tend to see a noticeable improvement in system responsiveness and energy use, particularly during shoulder seasons when heating demand fluctuates.
