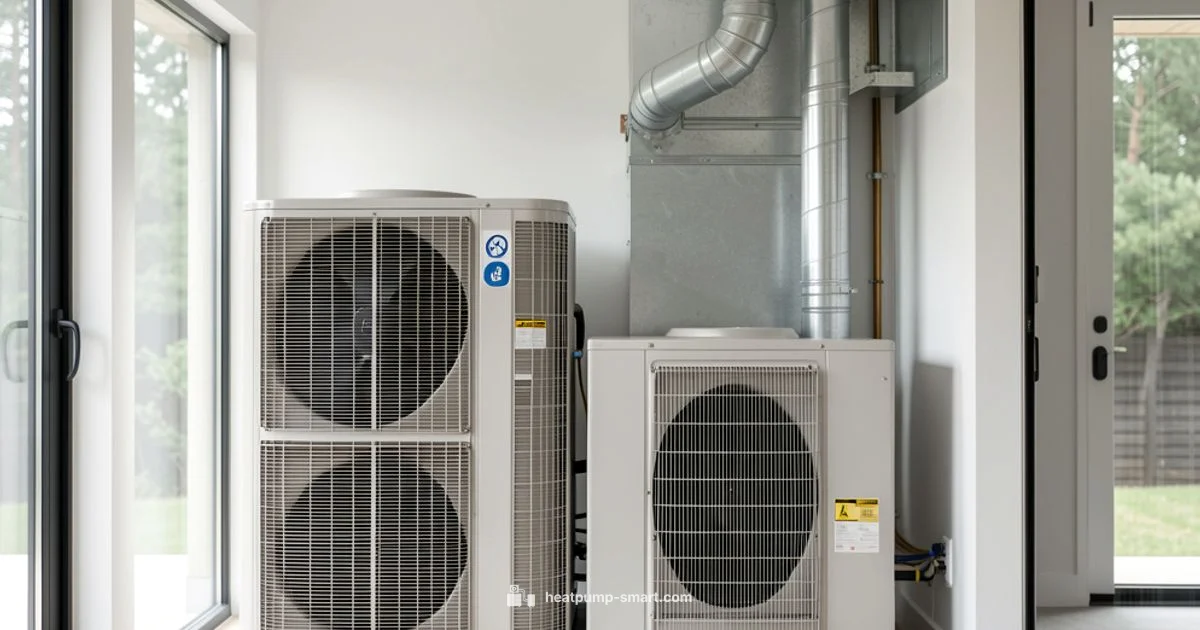

Heat Pump to Air Handler: How It Works and How to Optimize It

How a heat pump to air handler works

A heat pump system relies on two main components: an outdoor unit that houses the compressor and condenser, and an indoor air handler that contains the evaporator coil and blower. These two pieces are connected by a sealed refrigerant line set that carries a circulating refrigerant between the outdoor and indoor units. In heating mode, the outdoor unit absorbs heat from the outside air and transfers it to the refrigerant, which then releases that heat inside through the indoor coil. The air handler’s blower pushes this warmed air into the ductwork to heat living spaces. In cooling mode, the process reverses and the indoor air is cooled as heat is absorbed by the refrigerant in the indoor coil and rejected outside. A properly sized air handler must provide adequate airflow across the evaporator coil; too little air reduces heat transfer and can lead to coil icing or reduced comfort. Filtration and humidity control are also part of the indoor experience, contributing to healthier, more comfortable spaces. According to Heatpump Smart, proper pairing of the outdoor heat pump and indoor air handler is essential for energy efficiency and long-term reliability.

System configurations and indoor air handler types

Indoor air handlers come in several configurations. In most homes, a ducted air handler (often called a fan coil) sits inside a utility room or attic and conditions air that travels through a network of ducts. Ductless mini splits use a small indoor unit that handles space conditioning without large ductwork, though a heat pump to air handler pairing can still occur if a compact indoor unit shares a zone with an air handler. Modern indoor units often feature variable speed blowers and advanced control options, including ECM (electronically commutated motor) or PSC (permanent split capacitor) motors. The choice affects airflow precision, humidity management, and noise levels. When planning a retrofit or new installation, consider existing ductwork, ceiling height, and the number of zones. Heatpump Smart notes that well-designed ductwork and properly matched air handlers improve efficiency and comfort, especially in larger homes or multi-zone configurations.

Sizing, compatibility, and selection guidelines

Sizing starts with a detailed load calculation to determine the appropriate capacity for both the outdoor unit and the indoor air handler. The indoor unit must deliver sufficient airflow without creating excessive static pressure in the ducts. Compatibility considerations include coil size, refrigerant type, and the blower’s airflow rating. HVAC professionals use standards like Manual J for loads and Manual S for equipment selection to ensure the outdoor unit and air handler work in harmony. In addition to capacity, pay attention to duct design, filtration, and zoning strategy. A mismatched setup can reduce comfort, increase energy use, and shorten equipment life. Heatpump Smart emphasizes that this is not a one-size-fits-all decision; the right pairing depends on house size, insulation, climate, and occupancy patterns.

Installation considerations and professional requirements

Installing a heat pump to air handler requires a licensed HVAC technician. Key steps include routing refrigerant line sets with proper insulation, ensuring electrical supply and overload protection, configuring the thermostat and reversing valve, and verifying refrigerant charge after charging or evacuation. Ductwork should be sealed and insulated, with adequate supply and return air paths to prevent pressure drops. In retrofit projects, existing ducts may need reinforcement or rebalancing to accommodate the new system. Outdoor unit clearances, noise considerations, and outdoor airflow must meet local code and manufacturer guidelines. A professional installation minimizes warranty risk and ensures the system meets energy efficiency standards, potentially reducing long-term operating costs.

Efficiency implications and performance tips

Efficiency depends on proper sizing, high-quality components, and optimal airflow. A well-matched heat pump to air handler delivers steady temperatures with minimal temperature swings and better humidity control. Airflow balance, duct insulation, and filter quality significantly influence performance. Use smart thermostats with zoning or dynamic setpoints to maximize efficiency during different times of day. Regular maintenance—such as changing filters, inspecting coils, and verifying blower operation—helps sustain performance. Heatpump Smart highlights that maintenance frequency and component quality directly affect energy savings and comfort over the system’s life cycle.

Common issues and troubleshooting steps

Common problems include insufficient heating or cooling, unusual noises, ice on the outdoor coil, and reduced airflow. Troubleshooting steps start with basic checks: verify thermostat settings, replace or clean filters, and ensure duct vents are open. If heat output remains weak, inspect outdoor unit clearance and look for ice buildup on the outdoor coil, which may indicate low refrigerant or restricted airflow. For persistent issues, involve a certified technician to check refrigerant charge, electrical connections, and duct leakage. Keeping a regular service schedule can prevent many reliability problems and help identify inefficiencies before they escalate. Heatpump Smart suggests documenting seasonal performance so a technician can spot trends over time.

Authority sources and further reading

For a deeper understanding of heat pump to air handler systems, consult reputable sources.

• U.S. Department of Energy: https://www.energy.gov/energysaver/heat-pumps
• ENERGY STAR: https://www.energystar.gov/products/heating_cooling/heat_pumps
• American Society of Heating, Refrigerating and Air-Conditioning Engineers: https://www.ashrae.org/
• University extension resources: https://extension.umn.edu/repairing-and-maintaining-hvac-systems

Definition and terms glossary

This section defines key terms used in this article to help readers with quick reference and clarity.
