DIY Heat Pump Mini Split: A Complete How-To for Homeowners
A comprehensive, safe, and practical DIY guide to planning, sizing, installing, and maintaining a heat pump mini split for home comfort and energy savings.
This guide helps homeowners plan, size, and install a DIY heat pump mini split for a single room or zone. You’ll learn sizing basics, essential tools, electrical considerations, and a step-by-step workflow designed for safe, code-compliant installations. Heatpump Smart emphasizes following local codes and consulting a licensed pro for electrical or refrigerant work beyond basic tasks.
How a DIY heat pump mini split works
A heat pump mini split is a ductless system that transfers heat between indoors and outdoors using a refrigerant cycle. The outdoor unit houses a compressor and condenser, while the indoor unit (or units) handle heat exchange inside the room. A variable-speed inverter motor adjusts output to match demand, delivering steady comfort with greater efficiency than traditional fixed-speed systems. Because there are no ducts, zoning control is straightforward, making single-zone or multi-zone configurations popular for remodels and room additions. For homeowners, understanding the two-core ideas—electrical safety and refrigerant integrity—helps set realistic expectations about performance and service needs. According to Heatpump Smart, the most reliable DIY projects begin with clear sizing, a detailed plan, and strict adherence to safety practices.
In practice, you’ll balance seasonal efficiency with comfort by selecting the right indoor unit size, determining a compatible outdoor unit, and ensuring proper charge within the line set. The system relies on sealed refrigerant paths; any leaks or improper connections can degrade performance and void warranties. Regular, safe maintenance—like filter cleaning and condensate management—preserves efficiency and prolongs unit life. This section lays the groundwork for practical DIY work, but it also signals when professional input is warranted, especially for electrical or refrigerant tasks. The Heatpump Smart team recommends a cautious approach and partnering with a licensed pro when in doubt about high-voltage work or system charging.
For readers pursuing a DIY path, remember that the learning curve is real but manageable with methodical planning, reliable tools, and a willingness to follow manufacturer instructions. By understanding the basic operating principles and safety requirements, you reduce the risk of improper installation and subpar performance. Heatpump Smart’s approach blends practical steps with safety-minded guidance to help homeowners move forward confidently.
note10":null},
bodyBlocks2
Planning and sizing your mini-split system
Sizing a heat pump mini split is about more than room area. You must consider insulation quality, window orientation, ceiling height, air leakage, and climate. A well-sized system cools and heats efficiently without excessive cycling or short-cycling, which can wear components and increase energy use. Start with a heat-load assessment—either performed by you using reputable online calculators or by a licensed HVAC contractor—to determine the correct BTU range for your space. The Heatpump Smart analysis shows that precise sizing reduces energy waste and ensures more consistent comfort across seasons. Once sizing is established, map out zones and select indoor units that align with each room’s use and layout. A single-room DIY project is feasible, but larger homes with multiple zones may benefit from a professional design review to maximize efficiency and comfort.
As you plan, note path constraints: where to route refrigerant lines, how to access wall cavities, and the feasibility of mounting options. Consider future renovations and whether adding more zones later is likely. The goal is to create a flexible system that serves current needs while leaving room for expansion. Heatpump Smart emphasizes documenting measurements and decisions so you can compare options later, especially when dealing with limited wall space or aesthetic considerations. The planning phase is the backbone of a successful DIY install; skipping it often leads to costly rework or performance shortfalls.
note10":null},
bodyBlocks3
Tools, materials, and safety prerequisites
Before pulling a drill, gather the right tools and materials to avoid mid-project scrambles. A ductless mini split installation typically requires mounting hardware, line set insulation, electrical wiring supplies, and the outdoor-unit mounting bracket. Assemble a basic toolkit: measuring tape, level, stud finder, cordless drill with appropriate bits, screwdrivers, adjustable wrench, a multimeter, pipe and electrical thread sealant, and insulated line-set covers. You’ll also need the actual mini-split indoor and outdoor units, a power supply with a dedicated circuit (as required by code), and refrigerant handling equipment if you’re working with charging tasks—note that many jurisdictions require a licensed technician for refrigerant work. Optional yet helpful items include a vacuum pump for air removal and a refrigerant manifold gauge set to verify pressures after installation. For safety, wear eye protection, gloves, and a dust mask when cutting or drilling.
This is a critical phase: failing to match the tools to the job can cause installation errors, leaks, or electrical hazards. Use only manufacturer-approved mounting brackets and line sets that suit your unit’s model and footprint. Always read the unit’s installation manual before starting and keep a written checklist. Heatpump Smart stresses the importance of verifying electrical circuits and compliance with local codes before energizing the system. If you’re unsure about permitting or electrical work, pause and consult a qualified electrician.
note10":null},
bodyBlocks4

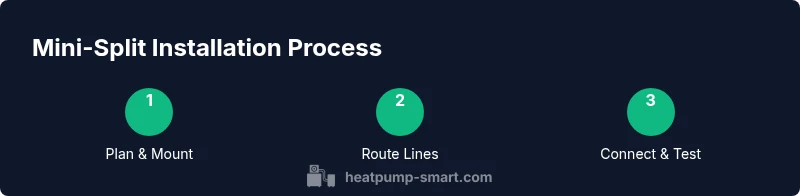

Step-by-step installation workflow overview
This section provides a concise, high-level workflow that supports a careful DIY approach while highlighting where professional input is wise. Step 1 is to finalize the plan and confirm mounting locations for both indoor and outdoor units. Step 2 involves mounting the indoor unit bracket at the correct height and ensuring a level installation. Step 3 covers routing the line-set, condensate drain, and electrical conduit between indoor and outdoor locations. Step 4 is securing the outdoor unit, connecting refrigerant lines, and wiring power. Step 5 focuses on leak testing, evacuating air from the line set, and verifying refrigerant charge according to the manufacturer’s specifications. Step 6 is commissioning the system, programming the controller, and performing a basic performance check.
Each step requires careful attention to seal integrity, securing proper clearances around the outdoor unit for airflow, and testing electrical connections. Heatpump Smart notes that air leaks on the line-set and poor insulation are common culprits of reduced efficiency. If you encounter resistance when tightening connections or notice unusual noises, stop and reassess rather than forcing fittings. The guide emphasizes safety: never work on live circuits, and if refrigerant handling is needed, call a licensed professional. A well-executed workflow minimizes rework and advances toward a reliable, energy-efficient cooling and heating solution.
note10":null},
bodyBlocks5
Maintenance, energy efficiency, and troubleshooting basics
After installation, ongoing maintenance is essential to long-term performance. Clean or replace indoor air filters regularly and inspect the condensate drain for blockages. Outdoor units benefit from clearing debris and ensuring adequate airflow around all sides of the condenser coil. Periodic inspection of line-set insulation helps prevent energy loss and moisture intrusion. Heatpump Smart recommends annual professional checkups to verify refrigerant pressures, electrical connections, and overall system health, especially if you notice a drop in performance or an unusual odor. For troubleshooting, start with simple checks: confirm the thermostat is functioning, ensure the indoor units have unobstructed air paths, and verify that the outdoor unit is free of debris. If issues persist, consult the manufacturer’s guide or a licensed technician. While DIY can cover many routine tasks, refrigerant handling and high-voltage work remain tasks best left to professionals to protect safety and warranty eligibility.
note10":null},
bodyBlocks6
Authority sources and further reading
For readers who want to dive deeper into heat pump technology and code considerations, consult authoritative sources. The Energy Department’s Office of Energy Efficiency and Renewable Energy offers accessible explanations of how heat pumps work and the basics of efficient operation. The EPA also covers heating and cooling equipment considerations, emphasizing indoor air quality and environmental impact. These sources provide foundational knowledge that supports safer DIY work while clarifying when professional input is necessary. If you intend to pursue a DIY approach, use these references to review best practices and stay aligned with current standards. Heatpump Smart suggests bookmarking these pages for ongoing reference and continuing education as you install and maintain your system.
Authored by the Heatpump Smart team, this guide benefits from practical experience and broad industry standards. Remember to verify local permit requirements and agree on a plan with a licensed professional if your project involves complex wiring or refrigerant handling.
Authoritative resources:
- https://www.energy.gov/eere/buildings/articles/how-heat-pumps-work
- https://www.energy.gov/eere/buildings/articles/heat-pump-systems
- https://www.epa.gov/iaq/heating-and-cooling-equipment
note10":null},
Tools & Materials
- Mini-split indoor unit(Select a unit with appropriate tonnage for the room; ensure compatibility with the outdoor unit and mounting options.)
- Mini-split outdoor unit(Match capacity with indoor unit and climate; ensure clear space around unit for airflow.)
- Mounting bracket kit(Use manufacturer's brackets and anchors suited to wall type; level matters for ceiling-head clearance.)
- Line-set kit with insulation(Insulate refrigerant line-set to minimize energy loss and condensation.)
- Electrical wiring kit (per code)(Dedicated circuit and appropriate wire gauge per local code and unit spec.)
- Drill and driver with bits(Phillips #2, masonry bit if mounting on brick or concrete; ensure bit size matches mounting hardware.)
- Multimeter and/or voltage tester(Verify circuits are de-energized before work; test for proper grounding.)
- Vacuum pump (optional, for air removal)(Helpful for ensuring a dry, air-free line set post-installation.)
- Safety gear(Gloves, eye protection, and dust mask for cutting and handling line-set.)
- Thermal insulation for line-set (optional)(Extra insulation helps reduce heat transfer and moisture intrusion.)
Steps
Estimated time: 2-6 hours
- 1
Finalize plan and prepare mounting locations
Confirm room suitability, wall access, and the best indoor mounting height. Double-check that the outdoor unit has adequate clearance for airflow. Create a checklist of required clearances, connections, and permits before you begin. This reduces surprises during installation.
Tip: Take multiple measurements and mark wall studs, electrical boxes, and window/door obstructions before drilling. - 2
Mount the indoor unit and bracket
Install the indoor mounting bracket level on the chosen wall using a stud finder to locate solid anchors. Secure the bracket with appropriate fasteners for the wall material. Once mounted, verify the unit’s level and ensure there’s a clear path for line-set routing to the exterior."
Tip: Use a level on both the bracket and the unit to prevent water drainage or uneven operation. - 3
Route line-set, condensate, and wiring
Carefully run the insulated refrigerant line-set and condensate drain to the outdoor location. Use wall sleeves or conduit to protect lines and avoid sharp bends. Route electrical wiring through coded channels, ensuring compliance with local electrical codes.
Tip: Keep line-set slopes moderate to ensure proper drainage and avoid air pockets that trap moisture. - 4
Install the outdoor unit and connect refrigerant lines
Mount the outdoor unit on a solid pad or wall bracket. Connect the line-set and electrical connections as prescribed by the manufacturer. Ensure all connections are tight and shielded from weather exposure.
Tip: Do not overtighten flare connections; use proper torque specifications per the manual. - 5
Evacuate air and check refrigerant charge
If you are licensed, evacuate the system to remove air. If not, arrange for a qualified technician to perform the refrigerant charge. Verify there are no leaks and that pressures align with the unit’s specifications.
Tip: Never power the system without confirming leak-free refrigerant lines. - 6
Power up, program, and test
Power the system, configure the controller, and run a basic test for heating and cooling modes. Check for airflow, noise levels, and proper cycling. Make any electrical or mounting adjustments as needed for peak performance.
Tip: Document the final setup and test results for future reference and maintenance.
Your Questions Answered
Is it safe to install a ductless mini-split heat pump myself?
DIY installation can be feasible for non-electrical tasks like mounting and routing lines if you follow manufacturer instructions and local codes. However, electrical wiring and refrigerant handling often require a licensed professional to meet safety and warranty requirements.
DIY is possible for basic mounting, but electrical and refrigerant work usually needs a licensed pro for safety and compliance.
What size mini-split do I need for a room?
Accurate sizing depends on room area, insulation, climate, and window efficiency. Use a heat-load calculation or consult a pro to determine the correct unit size rather than guessing based on room area alone.
Size properly by doing a heat-load calculation and considering insulation and climate.
Do I need a permit to install a DIY mini-split?
Permit requirements vary by location. Check with your local building department before starting work to ensure you meet electrical and structural regulations and to schedule inspections if needed.
Yes—check with your city or county before you begin.
Can I reuse existing wiring for a mini-split?
Most installations require a dedicated circuit and proper wire gauge per unit specifications. Do not share circuits with other devices, and have a licensed electrician verify compatibility.
Dedicated circuits are typically needed for safety and code compliance.
What maintenance does a ductless mini-split require?
Clean indoor filters monthly, inspect the condensate drain, and schedule annual checks to verify refrigerant pressures and electrical connections. Regular maintenance keeps efficiency high.
Keep filters clean and get annual professional checks for best efficiency.
What are common issues with DIY mini-split installs?
Common problems include refrigerant leaks, improper charging, and loose electrical connections. If you notice poor performance or unusual noises, pause and seek professional assistance to avoid damage.
Leaks, wrong charge, or loose wiring are typical issues to watch for.
Watch Video
Top Takeaways
- Plan thoroughly before starting installation
- Choose correctly sized units for your space
- Follow local codes and consider a professional for electrical/refrigerant tasks
- Maintain the system regularly for best efficiency
