Air-to-Water Heat Pump Installation: A Practical Guide
A complete, practical guide to installing an air-to-water heat pump for home comfort and energy savings. Learn sizing, outdoor placement, electrical and plumbing connections, commissioning, and maintenance with safety-first best practices.
This guide helps homeowners and pros install an air-to-water heat pump, covering sizing, outdoor placement, electrical and refrigerant considerations, plumbing connections, and commissioning for reliable heating and hot water. It emphasizes safety, professional help when needed, and energy-efficient operation. Follow the steps to achieve comfort and savings with confidence. This approach aligns with best practices from Heatpump Smart.
What is an air-to-water heat pump?
An air-to-water heat pump (A2WHP) extracts heat from outdoor air and transfers it to a water-based heating system. This type of system can provide space heating and domestic hot water, using electricity to move heat rather than generate it. Its efficiency depends on outdoor temperatures and system design. For homeowners, a properly installed A2WHP can offer reliable comfort with lower operating costs compared with fossil fuel boilers.
According to Heatpump Smart, correct sizing and professional installation are key to maximizing performance and longevity. You can expect a well-designed A2WHP to integrate with radiators, underfloor heating, or a hydronic coil in a boiler room.
Important terms to know include COP (coefficient of performance), SCOP (seasonal COP), heating curve, and buffer tank. The right configuration minimizes defrost cycles and ensures steady hot water supply. In climates with cold winters, pairing the A2WHP with auxiliary heat may be necessary, but proper planning can reduce reliance on electric resistance heating.
This section lays the groundwork for understanding how an air-to-water system works and why installation quality matters for long-term performance.
Why installation quality matters
According to Heatpump Smart, proper installation is essential to maximize efficiency and comfort. A high-quality install ensures the outdoor unit is correctly mounted to minimize vibration and noise, that piping and insulation prevent heat losses, and that electrical and control wiring are sized and protected to code. Poor installation can undermine COP, shorten equipment life, and void warranties.
Key reasons to prioritize quality:
- Correct unit selection and matching to the building load
- Proper outdoor placement with adequate clearance and drainage
- Leak-free refrigerant connections and well-sealed ducts or radiators
- Accurate electrical supply, disconnects, and protective devices
- A robust commissioning plan that verifies performance under typical weather conditions
By investing in careful planning and professional execution, you’ll enjoy reliable heating, hot water, and potential energy savings over the system’s life.
Pre-installation assessment and sizing
A successful install begins with a thorough assessment. Start with a heating load calculation to determine the right heat pump size for the home and water loop. Review existing distribution, zoning, and space constraints, and confirm hot water demand matches the system’s capabilities. Consider climate factors, insulation quality, and the potential for future upgrades. A well-sized unit avoids short cycling and ensures stable indoor temperatures.
Heatpump Smart analysis shows that mismatched sizing leads to inefficiencies and frequent cycling, which increases wear and reduces comfort. Document the required water temperature, flow rates, and whether a buffer tank or boiler integration will be used. This planning phase sets the foundation for a smooth installation and predictable operating costs.
System design and layout considerations
Designing the system involves coordinating the outdoor heat pump, indoor distribution, and water loop. Decide on whether to use radiators, underfloor heating, or a hydronic coil, and plan for a buffer/storage tank if needed. Ensure the water circuit includes proper expansion vessels, filtration, and air-removal devices. Insulate all hot water lines and minimize thermal losses through thoughtful routing to keep efficiency high.
Also plan for control integration with the home’s thermostat and any smart controls. A well-drawn plan helps avoid retrofits and reduces the chance of leaks or improper balancing later.

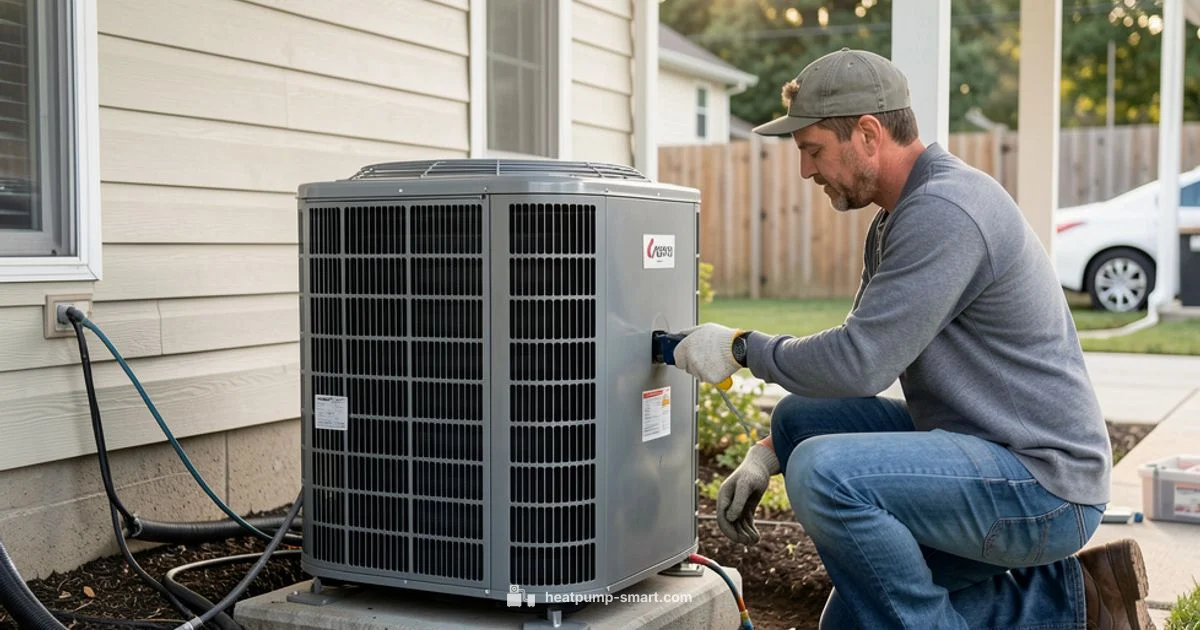

Outdoor unit placement and acoustics
Outdoor placement affects performance, noise, and maintenance access. Position the unit on a solid, level pad, away from bedrooms and living spaces where possible, and ensure ample clearance for service and airflow. Use anti-vibration mounts and weatherproof connections to minimize noise transmission. Consider shading and wind direction, and provide drainage so condensate and meltwater don’t pool around the base.
A thoughtful layout reduces defrost cycles and helps maintain consistent indoor temperatures. If your climate includes high winds, shield the unit while maintaining adequate airflow.
Plumbing and refrigerant connections
Plumbing must connect the outdoor heat exchanger to the indoor water loop with properly insulated copper lines. Use appropriate fittings, avoid kinks, and ensure safe routing to prevent damage. Insulate pipes thoroughly to reduce heat loss and condensation. Refrigerant connections require certified handling and leak testing; do not attempt brazing or charging without proper training and equipment.
All joints should be cleaned and brazed with appropriate materials, and a vacuum test should be performed to remove moisture from the lines before charging. This step is critical for system longevity and safety.
Electrical, controls, and integration
Electrical work must meet local codes and safety guidelines. Install a dedicated circuit with appropriate overcurrent protection and a weatherproof disconnect near the outdoor unit. Ensure control wiring communicates accurately with the indoor thermostat, water temperature sensors, and any zoning equipment. Plan for a reliable power source and consider future smart-home integration.
Before energizing the system, confirm all safety interlocks, wiring color codes, and protective conduits are in place. Incorrect wiring can damage components or create safety hazards.
Commissioning, testing, and maintenance plan
Commissioning includes verifying refrigerant charge, flow rates, and water temperatures under typical operating conditions. Test heat delivery to all zones and confirm that the domestic hot water function meets demand. Run a leak check and a defrost cycle to ensure reliable operation in cold weather. Establish a maintenance schedule: filter checks, refrigerant inspections, and annual professional service.
Document setpoints, fault codes, and routine service tasks so future technicians can maintain performance. A clear maintenance plan helps sustain efficiency and comfort.
Common pitfalls and best practices
- Pitfall: Skipping load calculations or assuming a unit size without full system data. Best practice: perform a proper load calculation and verify with a professional.
- Pitfall: Inadequate outdoor clearance leading to poor airflow. Best practice: follow manufacturer minimums and keep space free of obstructions.
- Pitfall: Neglecting insulation and pipe protection. Best practice: insulate all PD (pressure drop) lines and seal joints.
- Pitfall: Incompatible controls or sensors. Best practice: match controls to your system and verify with commissioning tests.
- Pitfall: DIY refrigerant work. Best practice: hire a certified technician for any refrigerant-related tasks.
Tools & Materials
- Heat pump outdoor and indoor units(Select a model sized for your heating and hot-water needs, with compatible water loop connections.)
- Pipes and fittings (copper or PEX)(Insulated copper lines for refrigerant; insulated water piping for the loop.)
- Insulation material(Pipe insulation, tank insulation as needed.)
- Electrical supply and protective devices(Dedicated circuit, appropriate breaker, and disconnect near outdoor unit.)
- Gasket, sealant, and mounting hardware(Weatherproof seals and vibration isolation components.)
- Refrigerant tools and safety equipment(Leak detector, manifold gauge set, vacuum pump (as needed), PPE.)
- Water loop components(Expansion vessel, thermal expansion control, filters, and pressure relief as required.)
- Thermostats and controls(Wired or smart controls compatible with zoning systems.)
- Drainage and condensate management(Hose or condensate drain and safe routing.)

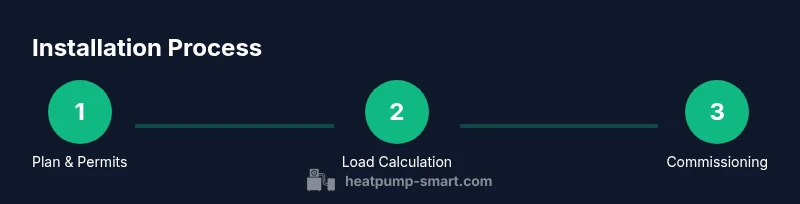

Steps
Estimated time: 8-16 hours depending on site complexity and whether refrigerant work is required
- 1
Plan and verify permits and codes
Review local building and electrical codes and determine permit requirements. Create a site plan showing outdoor unit location, water loop routing, and service access. Confirm warranty conditions and any manufacturer installation requirements.
Tip: Check with the utility for any available incentives before starting. - 2
Perform load calculation and select unit
Calculate the heating load for your home and water demand to determine the appropriate A2WHP size. Match the unit to the hot water requirements and distribution system (radiators, underfloor, or coils).
Tip: Document assumed temperatures and design outdoor temperatures for reference. - 3
Prepare outdoor mounting location
Choose a stable, level pad with drainage; ensure clearance for service and airflow. Install anti-vibration mounts and weatherproof enclosure if needed. Protect lines from weather extremes and ensure accessible service panels.
Tip: Avoid locations behind walls or enclosures that trap heat. - 4
Install outdoor unit and refrigerant lines
Mount the outdoor unit securely; route refrigerant lines with proper insulation and protection. Perform leak checks and ensure lines are free of bending or kinks. If you’re not certified, hire a pro for refrigerant work.
Tip: Keep the line length within manufacturer specifications to preserve efficiency. - 5
Connect indoor water loop and distribution
Link the water loop to the indoor distribution system, including any buffer tank or boiler integration. Ensure proper flow and temperature sensors are in place. Seal and insulate all pipework.
Tip: Balance the system so each zone receives adequate flow. - 6
Make electrical connections and controls
Install the dedicated circuit, connect the disconnect, and integrate thermostat and zoning controls. Verify safety interlocks and ensure wiring color codes are correct. Do not bypass protective devices.
Tip: Label all wires and document the wiring schematic. - 7
Perform leak tests and vacuum as needed
Pressure test refrigerant and water lines for leaks. If required, perform a vacuum to remove moisture from refrigerant lines before charging. Confirm all joints are tight and properly brazed.
Tip: Use a certified technician for refrigerant handling. - 8
Commission and test performance
Power up, run through initial commissioning, and verify heating and hot water delivery across zones. Adjust control setpoints for comfort and efficiency. Train occupants on basic operation and scheduling.
Tip: Keep a log of operating parameters for future reference. - 9
Establish maintenance plan
Create a routine maintenance schedule with filter changes, inspections, and annual professional checkups. Record service dates and any parts replaced or recalibrated.
Tip: Set reminders so maintenance is not overlooked.
Your Questions Answered
Is a permit required for air-to-water heat pump installation?
Permit requirements vary by location. Check with your local building department and utility programs to confirm whether permits and inspections are needed.
Permit requirements vary by location, so check with your local building department to confirm.
Do I need a buffer tank or hydronic storage with an air-to-water heat pump?
A buffer tank or storage option may be recommended depending on your heating distribution and hot water use pattern. It helps stabilize temperatures and improve efficiency.
A buffer tank might be recommended depending on your system and how you use hot water.
Can I install an air-to-water heat pump myself?
Refrigerant handling and electrical work typically require licensed professionals. DIY installation can void warranties and pose safety risks.
Generally, refrigerant work and electrical wiring should be done by a licensed professional.
What maintenance is required for an air-to-water heat pump?
Regular maintenance includes filter checks, system cleaning, inspecting refrigerant lines for leaks, and annual professional service. Keep a log of service tasks.
Keep up with annual maintenance and routine checks to maintain efficiency.
What affects the efficiency of an air-to-water heat pump?
Efficiency depends on proper sizing, outdoor temperatures, water loop design, insulation, and system controls. A well-planned setup keeps efficiency high across seasons.
Efficiency relies on sizing, climate, insulation, and smart controls.
How long does installation typically take?
A professional installation can vary by site, often taking a day or two, depending on system complexity and permitting processes.
Most installations take one to two days, depending on site specifics.
Watch Video
Top Takeaways
- Size the system with a proper load calculation
- Plan permits and site layout before work
- Prioritize outdoor unit placement and airflow
- Use certified technicians for refrigerant work
- Commission thoroughly and set up a maintenance schedule
