Mitsubishi Heat Pump Installation: A Complete How-To Guide
Learn how to install a Mitsubishi heat pump safely and efficiently. This guide covers planning, sizing, site assessment, electrical readiness, outdoor/indoor installation, refrigerant handling (by licensed pros), commissioning, maintenance, and expected performance.
This guide shows you how to complete a safe Mitsubishi heat pump installation, covering site assessment, electrical readiness, outdoor unit placement, indoor hookups, refrigerant piping, and commissioning. It highlights permits, clearances, and safety checks, plus how to verify performance. For complex homes, hire a licensed pro. This approach reduces errors and ensures energy efficiency.
Pre-installation planning and compliance
Before you begin a Mitsubishi heat pump installation, plan carefully, verify site suitability, and secure the required permits. The Heatpump Smart team emphasizes that successful installations start with planning, an accurate load assessment, and a review of local codes for electrical, mechanical, and drainage requirements. In many regions you will need building or electrical permits and a licensed contractor to handle refrigerant work. Start by confirming the outdoor installation location can support the equipment, has adequate airflow, and is a reasonable distance from bedrooms to minimize noise. Evaluate the indoor layout to ensure that the air handler or ductless head can be installed without obstructing access to utilities or living spaces. Finally, review warranty terms and manufacturer installation guidelines for Mitsubishi heat pumps to avoid invalidating coverage. According to Heatpump Smart, documenting measurements, checking clearances around the outdoor unit, and preparing a realistic project timeline are essential first steps for a trouble-free install.
System sizing and Mitsubishi options
Sizing a Mitsubishi heat pump means aligning your home’s heating and cooling needs with the efficiency and capabilities of the equipment. Start with a formal load calculation or Mitsubishi’s sizing guidelines to select a model with appropriate efficiency ratings for your climate. The Heatpump Smart team notes that proper sizing reduces short cycling, improves humidity control, and enhances long-term energy savings. When choosing between single-zone and multi-zone configurations, consider whether you want ducted or ductless heads, commissionability across spaces, and future expansion potential. Larger homes or properties with zoning often benefit from multi-head configurations, while smaller spaces may be more cost-effective with single-zone units. By prioritizing appropriate size and layout, you’ll maximize comfort and reliability across seasons.
Site assessment and equipment readiness
Site assessment is the bridge between planning and execution. Inspect the outdoor location for airflow, exposure to debris, and noise considerations, and ensure a level, solid mounting surface. Confirm you have a clear route for refrigerant lines and electrical wiring, and verify that indoor access points won’t be blocked by furniture or walls. Noise-sensitive areas like bedrooms should be considered in placement. Prepare for potential weather scenarios; a partially shaded outdoor location can improve efficiency, but ensure drainage and ice-prone areas are accounted for. Finally, verify that your structural and electrical infrastructure can accommodate the added load and that there’s room for service access and future maintenance. This stage reduces surprises during installation and ensures long-term reliability.
Electrical readiness and safety
Electrical readiness is critical for safety and performance. Ensure a dedicated circuit for the outdoor unit and a properly rated disconnect switch, plus appropriate overcurrent protection. Confirm a 240V supply or the unit’s specified voltage, and ensure proper grounding and bonding. Plan wiring routes that minimize exposure to moisture and physical damage, and confirm that all work complies with local electrical codes and permits. If you need to alter the service panel or run new feeders, hire a licensed electrician. Safe practices, like lockout-tagout during work and the use of PPE, protect both installers and occupants. Keep a clear record of electrical modifications for warranty claims and future service.

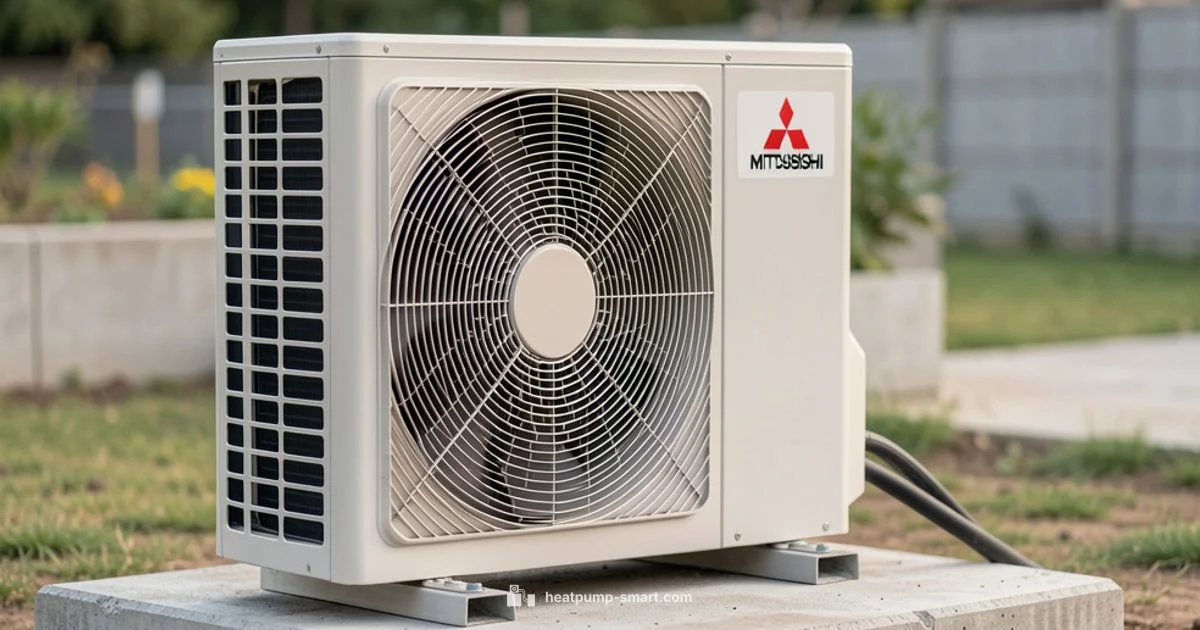

Outdoor unit installation: mounting, clearances, and connections
Outdoor unit placement influences performance and durability. Mount the unit on a vibration-absorbing pad or sturdy concrete pad, ensuring it is level and correctly oriented for optimal airflow. Maintain Mitsubishi’s recommended clearances from walls, fences, and other equipment, and secure the mounting hardware to prevent movement in wind or seismic events. Route refrigerant line sets and control wiring through weather-rated conduits or through-wall entries, and seal all penetrations to prevent moisture intrusion and pest ingress. Proper insulation of line sets minimizes heat gain and condensation. Install a condensate drain with a reliable slope and test the electrical connections to confirm power and signal integrity. A well-mounted outdoor unit reduces noise, vibration, and wear over time.
Indoor unit installation: air handlers and ductwork
Indoor installation varies by system type. For ducted configurations, mount the air handler where it can deliver even airflow with accessible filters and service panels. For ductless (mini-split) arrangements, place indoor heads for effective zoning and occupant comfort, avoiding obstructions to doors or furniture. Connect refrigerant lines to the indoor unit following the manufacturer’s torque specs, ensuring line-set length and bend radii comply with guidance. Route control and drainage lines cleanly, preserving service access. Verify that refrigerant connections are dry and protected from moisture, and that electrical connections at the indoor unit are secure. Proper placement minimizes noise and ensures efficient heating and cooling across zones.
Refrigerant lines, insulation, and leak testing
Refrigerant handling is regulated and must be performed by a licensed HVAC professional. If you’re a technician, purge the system, braze line sets, and perform a leak test in accordance with industry standards. Insulate all refrigerant lines to prevent condensation and energy loss, and seal wall penetrations to prevent drafts and pests. Match refrigerant line set sizes to the outdoor unit and indoor connections, and torque connections to spec. After installation, verify there are no leaks using an approved detector and document test results for warranty compliance. This step is essential for safety and system longevity.
Commissioning, controls, and performance verification
Commissioning ensures the system performs as designed and feels comfortable. Program thermostats or Mitsubishi controls to align with zones, schedules, and humidity targets. Run a full heat and cool cycle, observe temperatures across rooms, and adjust fan speeds or dampers to balance airflow. Check electrical readings and refrigerant pressures per the manual, and resolve any fault codes before declaring a successful start-up. Validate that the system meets expected energy savings under typical operating conditions by comparing performance data over several days. A thorough commissioning process provides confidence, helps identify issues early, and enhances occupant comfort.
Maintenance, warranty, and common mistakes to avoid
Establish a simple maintenance calendar that includes air-filter replacement, coil cleaning, condensate drain checks, and annual professional inspections. Preserve documentation for warranties and service records. Common mistakes to avoid include skipping permits, omitting a proper vacuum purge during brazing, neglecting condensate drainage, or using incompatible components. Follow Mitsubishi installation guidelines and Heatpump Smart’s best practices to maximize reliability and energy savings. Regular maintenance and proper commissioning protect your investment and ensure dependable comfort for years.
Tools & Materials
- Electric drill with masonry bit(For mounting hardware into concrete or masonry surfaces)
- Level and measuring tape(Ensure outdoor unit pad is level and proper clearances)
- Cordless impact driver or wrench(For securing mounting brackets and panels)
- Safety gear (gloves, safety glasses)(Personal protection during lifting and drilling)
- Voltage tester / multimeter(Verify circuits are de-energized during work)
- Torque wrench(Tighten electrical and refrigerant connections to spec)
- Refrigerant line set(Handled by licensed technician; do not attempt charging)
- Pad or anti-vibration pads(Provide level support and reduce vibration)
- Conduit and weatherproof entry seals(Protect wiring and lines from moisture)
- Pipe bending tools and deburr tool(For line-set fabrication and proper bends)
- Drain hose or condensate line materials(Ensure reliable condensate disposal)

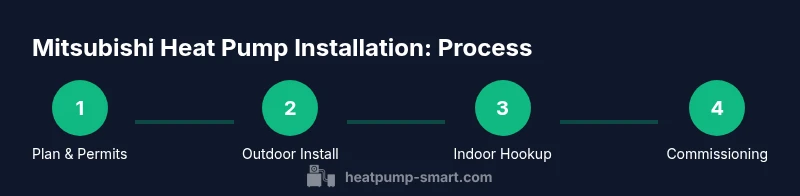

Steps
Estimated time: 4-8 hours
- 1
Assess site, permits, and plan
Audit the property for location suitability, available space, and potential noise concerns. Confirm required permits and a project plan that includes timelines, responsibilities, and safety procedures.
Tip: Document measurements with photos to avoid miscommunication later. - 2
Prepare outdoor mounting pad
Install a level, vibration-absorbing pad or concrete platform in a shaded, accessible area with clearances as specified by Mitsubishi. Secure the pad to a stable base to prevent movement.
Tip: Use anti-vibration pads to minimize equipment noise and wear. - 3
Mount outdoor unit and run lines
Place the outdoor unit on the pad, level it, and secure it. Route refrigerant lines and control wiring through a weatherproof conduit to the interior space.
Tip: Inspect line-set routing for sharp bends; avoid kinks that impede flow. - 4
Prepare electrical supply and disconnect
Install a dedicated circuit with a proper disconnect, grounded, and compliant with local codes. Verify all wiring routes are protected and accessible for service.
Tip: Have a licensed electrician handle electrical modifications and permit filings. - 5
Install indoor unit and connect lines
Mount indoor air handler or ductless head in an accessible location with unobstructed airflow. Connect refrigerant lines to the indoor unit while ensuring clean, moisture-free connections.
Tip: Place indoor units away from doors and high-traffic pathways to minimize disturbances. - 6
Insulate and seal line sets
Apply insulation to refrigerant lines and seal wall entries to prevent energy loss and moisture intrusion. Ensure line lengths comply with manufacturer specs.
Tip: Seal all penetrations to prevent pests and drafts. - 7
Connect condensate drainage
Install a properly sloped condensate drain for both indoor and outdoor components. Confirm drainage paths do not cause water damage or icing.
Tip: Test drainage by simulating a full cycle and watching for proper flow. - 8
Commissioning and controls setup
Program the thermostat or control app to match zones, schedules, and humidity targets. Run heating and cooling cycles and balance airflow in each area.
Tip: Document start-up data and keep a record for warranty claims. - 9
Test, verify, and finalize
Verify temperatures match setpoints, ensure no fault codes appear, and check energy usage against expectations. Confirm all safety devices are functioning and maintenance reminders are set.
Tip: Review warranty terms and keep installation records in a safe place.
Your Questions Answered
Do I need a licensed technician for Mitsubishi heat pump installation?
Yes. Refrigerant handling, electrical work beyond basic wiring, and most warranty terms require a licensed HVAC professional and proper permits. Always verify local requirements before starting.
Yes, you should hire a licensed HVAC professional for refrigerant handling, electrical work beyond basics, and to secure permits.
What permits are typically required for installation?
Most jurisdictions require electrical and building permits, and some areas may require a refrigerant handling license. Check with your local building department and utility provider before starting.
Permits vary by location; check with local authorities to ensure compliance.
How long does installation usually take?
Time depends on the home layout, ductwork, and whether the system is ducted or ductless. A typical installation can take several hours when performed by a qualified installer.
It can take several hours depending on the system type and home layout.
Can I install a Mitsubishi heat pump myself?
DIY installation is not recommended due to refrigerant handling, electrical safety, and warranty constraints. Professional installation reduces risk and ensures proper commissioning.
DIY is not advised; refrigerant and electrical work require a pro.
What maintenance is required after installation?
Schedule annual professional checks and perform routine tasks like filter cleaning and condensate drainage. Regular maintenance helps sustain efficiency and extend system life.
Annual professional checks plus routine maintenance keeps it efficient.
Do Mitsubishi units actually save energy?
Mitsubishi heat pumps are designed for high efficiency; savings depend on climate, insulation, and usage. Pairing with correct sizing yields the best results.
Energy savings depend on climate and usage, but efficient design helps.
Watch Video
Top Takeaways
- Plan first, permits second, and install with a licensed pro for refrigerant work.
- Proper sizing and placement maximize comfort and energy savings.
- Secure outdoor mounting and protect line sets from moisture and pests.
- Thorough commissioning ensures reliable performance and warranty validity.
- Maintain a documented maintenance schedule to extend system life.
