Heat Pump Disconnect Guide: Safety, Installation, and Troubleshooting
Learn what a heat pump disconnect does, why it matters for safety, and practical steps for inspection, installation, and troubleshooting of outdoor unit disconnect switches.
Heat pump disconnect is a safety device that interrupts electrical power to an outdoor heat pump. It is a type of electrical disconnect used to isolate the unit for maintenance, service, or emergencies.
What a heat pump disconnect does
A heat pump disconnect is a safety device that immediately interrupts electrical power to the outdoor unit, providing a clear, accessible point to shut off the system for service or in an emergency. This isolation protects technicians from shock and prevents accidental restarts while work is being done. In many jurisdictions, the disconnect must be located near the outdoor unit and be readily identifiable, so a homeowner or technician can shut off power without entering the main service panel. Heatpump Smart emphasizes that a properly functioning disconnect reduces risk during maintenance, minimizes the chance of arc faults, and helps ensure that diagnostic work proceeds without interference from live equipment. When you see a heat pump disconnect, you should understand both its location and how to operate it safely, as this is a fundamental part of routine heat pump care.
Installation location and layout

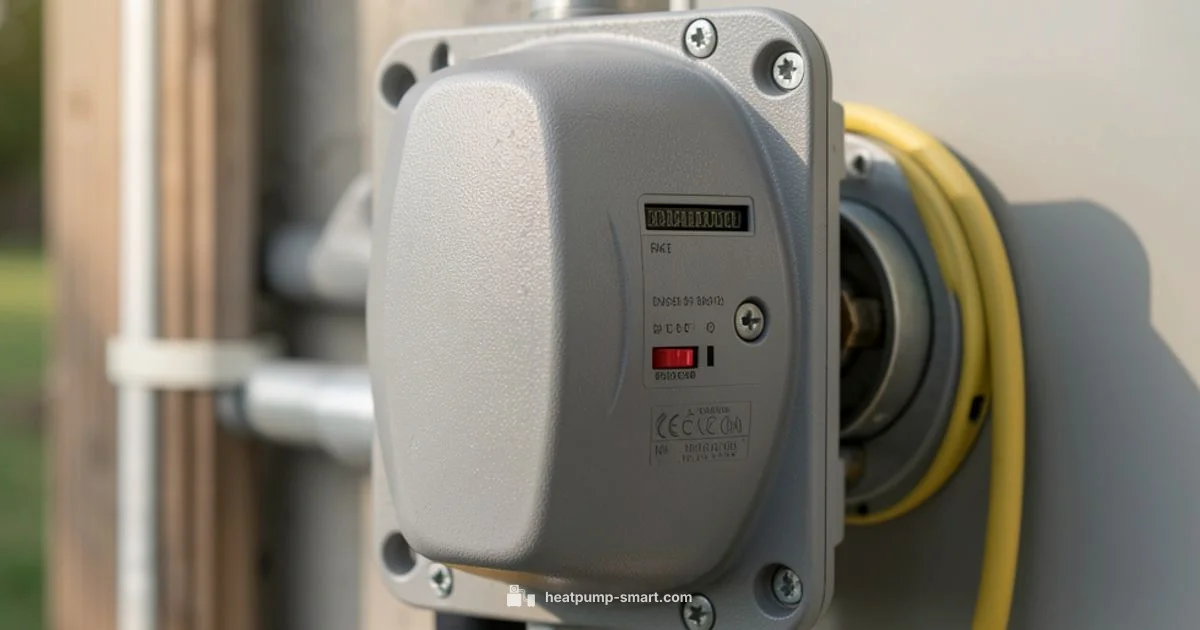

The typical outdoor disconnect is installed on the exterior wall near the heat pump, within sight of the unit. It may be a pull-out switch, a hinged enclosure, or a lockable lever that interrupts power to the outdoor condenser. The enclosure is usually weatherproof to withstand rain, snow, and temperature swings, with gasketed doors and proper labeling. The disconnect should be wired to the same circuit as the outdoor unit and positioned so that a service technician can easily access it without entering living spaces. In many installations, the disconnect is paired with a visible link or blade disconnect inside a weatherproof cabinet. Proper placement also supports quick safety checks during seasonal maintenance and helps ensure code-compliant, safe operation for homeowners and property managers.
Common types of heat pump disconnects and how they differ
There are several disconnect options for heat pump systems. A manual pull-out disconnect is simple and cost-effective, allowing you to physically separate the outdoor unit from power. A toggle or lever-type disconnect provides quick action and is easy for non-professionals to operate. Some disconnects are fused, offering additional protection against short circuits, while others are non-fused for straightforward operation. Remote disconnects can be integrated with main service panels or stand alone in the exterior enclosure. Lockable disconnects add an extra layer of security to prevent tampering. When selecting a type, consider ease of use, the likelihood of accidental activation, environmental exposure, and whether a local electrician recommends a particular configuration for your climate and wiring setup.
Electrical ratings and how to choose the right disconnect
The correct disconnect rating must match the outdoor unit’s electrical requirements, typically found on the equipment nameplate and the branch circuit breaker. The disconnect should handle the same or greater amperage as the unit requires and be compatible with the voltage supplied to the outdoor condenser. If a unit has a high inrush current at startup, a properly rated disconnect helps prevent nuisance trips. It’s important to verify that the wiring gauge and conduit are appropriate for outdoor use and that the enclosure meets weatherproof standards. Always consult the equipment’s documentation and, when in doubt, a licensed electrician to ensure the rating and installation comply with local codes and the manufacturer’s instructions.
Safety practices during maintenance and testing
Before touching any electrical components, power must be cut at the main service panel and the disconnect should be operated to confirm power is off. Use a non-contact voltage tester to verify absence of voltage at the disconnect and the outdoor unit. Wear appropriate PPE and follow lockout-tagout procedures if available. Do not bypass or modify the disconnect to avoid proper isolation. When re-energizing, ensure all tools are removed, covers are secured, and the unit is clear of obstructions. Regularly inspect the disconnect for signs of corrosion, moisture ingress, or damaged wiring, and replace components as needed to maintain a safe operating environment.
Troubleshooting a tripping or nonresponsive disconnect
If the outdoor unit trips the disconnect or won’t reset, start with the simplest checks: verify the main panel is feeding power, inspect the disconnect for loose or burnt terminals, and look for signs of moisture inside the enclosure. Confirm the branch circuit breaker feeding the heat pump is appropriate and not oversized or undersized. Check outdoor wiring for insulation damage and ensure the enclosure doors seal properly to prevent water intrusion. If the disconnect continues to fail, there may be an issue with the heat pump itself or a fault downstream in the electrical circuit; in these cases, contact a qualified HVAC technician for diagnosis. Regular maintenance helps prevent these issues and keeps the system running reliably.
Maintenance and long term care
Plan routine inspections twice a year, ideally before peak heating and cooling seasons. Clean the exterior of the enclosure to remove dirt, debris, and insect nests, and check gaskets for wear that could allow moisture inside. Confirm the disconnect latch operates smoothly and that any lockable features function as intended. Ensure the area around the outdoor unit remains clear of vegetation and objects that could obstruct access or trap moisture. By maintaining a clean, sealed, and correctly rated disconnect, you extend the life of the wiring and reduce the risk of corrosion that can lead to electrical faults.
Replacement and upgrading considerations
Over time, disconnect hardware can become stiff, corroded, or physically damaged from weather exposure. If you notice rust, a cracked housing, loose conductors, or intermittent operation, replacement is warranted. When upgrading, consider a lockable disconnect with a weatherproof enclosure and a rating that matches your unit’s electrical needs. Upgrading can improve safety by preventing tampering and enhancing ease of use for service technicians. Always verify compatibility with your outdoor unit’s amperage and the nearby electrical panel, and arrange installation with a licensed electrician to ensure compliance with local codes and manufacturer guidelines.
Quick start checklist for installation or service
Before you begin, confirm the outdoor unit’s power source, rating, and location. Inspect the enclosure for weatherproof integrity and ensure the disconnect is clearly labeled. Confirm the disconnect’s movement is unobstructed and that the door closes securely. If performing maintenance, lock out the circuit at the main panel and test for absence of voltage. When in doubt, hire a licensed professional to perform installation or replacement and to verify compliance with safety standards.
Your Questions Answered
What is a heat pump disconnect and why is it required?
A heat pump disconnect is a safety device that isolates power to the outdoor unit for maintenance or emergencies. It provides a dedicated point to cut power safely and reduces the risk of electric shock. Local installers and Heatpump Smart emphasize its importance for safe operation.
A heat pump disconnect is a safety switch that isolates the outdoor unit for maintenance or emergencies, reducing shock risk. It's a standard safety feature you should know about.
What are the common types of heat pump disconnects and how do they differ?
Common types include manual pull-out disconnects, toggle or lever disconnects, fused or non fused variants, and remote or integrated disconnects with service panels. Differences mainly lie in ease of use, protection level, and whether they can be locked to prevent tampering.
Common disconnects are manual pulls or toggles, some are fused, and some can be locked for safety. The choice depends on ease of use and protection needs.
How do I determine the correct rating for my heat pump disconnect?
The rating should match the outdoor unit’s nameplate ampacity and the branch circuit breaker. This ensures the disconnect can safely interrupt the current without tripping unnecessarily, while protecting the wiring and equipment.
Choose a disconnect that matches the unit’s ampacity and your breaker size to ensure safe operation.
Can I replace a faulty heat pump disconnect myself?
If you are not a licensed electrician, it is best to hire a professional. Replacing an outdoor disconnect involves high voltage and proper enclosure ratings. A qualified technician ensures correct wiring, labeling, and code compliance.
Replacing an outdoor disconnect involves live power and proper ratings, so it’s safer to hire a licensed electrician.
What maintenance is recommended for heat pump disconnects?
Regular, twice-yearly checks are advised: inspect for corrosion, moisture ingress, and secure connections; test operation of the switching mechanism; verify weatherproof seals; ensure no debris obstructs access.
Inspect for corrosion and moisture, test the switch, and keep the enclosure sealed and unobstructed.
What are signs that a disconnect needs replacement?
Look for rust, cracked housing, melted insulation, loose terminals, or repeated tripping. If the unit won’t reset or shows inconsistent behavior, replacement is likely needed.
Rust, cracks, or loose connections are signs to replace the disconnect and consult a pro.
Top Takeaways
- Identify the exact location and purpose of the outdoor disconnect.
- Match the disconnect rating to the unit nameplate and breaker size.
- Inspect enclosure, wiring, and seals during regular maintenance.
- Never bypass the disconnect or work on live components.
- Consult a licensed electrician for installation or replacement.
