How to Replace a Heat Pump Capacitor: A Practical Guide
Learn how to safely replace a heat pump capacitor, diagnose failure signs, select the correct replacement, and test your system to restore reliable heating and cooling.
In this guide you will learn how to safely replace a heat pump capacitor, diagnose failure signs, and verify system operation after installation. You'll need basic electrical PPE, the correct run capacitor, a screwdriver, a multimeter, and a non-contact voltage tester. This process minimizes compressor stress and extends your unit's life.
Why capacitor health matters in heat pumps
Capacitors are small yet critical components in heat pump start and run circuits. They store electrical energy to help start the compressor and the fan motor, and they smooth out current. When a run capacitor fails, the system may short cycle, struggle to start, or make buzzing noises. According to Heatpump Smart, a failing run capacitor is a common cause of short cycling and hard starts in air-source heat pumps. Replacing the capacitor with the correct rating can restore performance and prevent further strain on the compressor. This section explains how capacitors function, what symptoms to watch for, and how a failed cap can influence overall efficiency. The key is to match the capacitor rating to the original specification and to handle the replacement safely to minimize motor stress during the transition.
Capacitors are designed for a specific voltage and a specified capacitance (measured in microfarads, µF). Using the wrong rating can cause insufficient starting torque or excessive current draw, which can shorten the life of the compressor and other components. Before attempting any work, confirm you have the correct replacement part and understand the unit’s wiring schematic. In many makes, the run capacitor is a round can mounted inside the outdoor unit or on the control board enclosure. Replacement is straightforward when you follow proper safety steps and keep track of each wire’s terminal.
The big picture is simple: you want a capacitor with the same µF rating and voltage rating as the original, installed in the same orientation and connected to the same terminals. Keep a record of the part you removed (model number, µF, and voltage) for future reference. By understanding the role of the capacitor and the risks of improper replacement, homeowners can avoid unnecessary failures and protect energy efficiency over time.
note”:null},
toolsMaterials":{"items":[{
name
required
note
Tools & Materials
- Non-contact voltage tester(Use to confirm no live voltage before touching wires.)
- Multimeter (capacitance mode if available)(Verify capacitor rating and test continuity after replacement.)
- Screwdriver set (Phillips and flathead)(Remove panels and access capacitor safely.)
- Insulated gloves(Protect hands when handling electrical components.)
- Safety glasses(Shield eyes from sparks or debris.)
- Replacement run capacitor (same µF and voltage)(Check the capacitor label or unit manual for exact rating.)
- Electrical tape or cable ties(Bundle and secure wiring neatly after replacement.)
- Marker or camera to label wires(Document wire positions before disconnecting.)

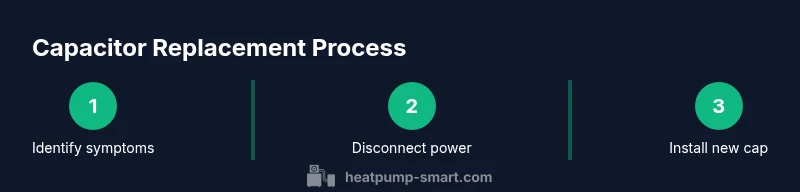

Steps
Estimated time: 40-75 minutes
- 1
Power down and lockout
Shut off power at the main service panel feeding the heat pump. If available, apply a lockout/tagout device to prevent accidental energizing. Wait at least a few minutes to allow stored energy to dissipate before you begin.
Tip: Always assume a stored charge can be present and verify with a tester before touching any conductors. - 2
Verify isolation with tester
Use a non-contact voltage tester to confirm there is no live voltage on the outdoor unit’s control wiring and capacitor terminals. If you detect any voltage, stop and re-check the power source.
Tip: Double-check at multiple points (breaker, disconnect, and unit) to ensure full isolation. - 3
Locate and identify the capacitor
Open the outdoor unit housing and locate the run capacitor, typically a round can with two or more terminals marked C, FAN, and HERM. Read the label to confirm the µF rating and the rated voltage.
Tip: If the label is unreadable, photograph the area and consult the service manual before continuing. - 4
Discharge the capacitor safely
Discharge any stored energy by momentarily bridging the terminals with an insulated tool or resistor as per your device guidelines. Keep your body and tools clear of the capacitor body during discharge.
Tip: Never touch the capacitor terminals with bare hands during discharge. - 5
Disconnect the old capacitor
Note the wire positions and color codes, then loosen the mounting bracket and disconnect the leads from the terminals. Remove the old capacitor from its housing and set it aside for proper disposal.
Tip: Label wires or take a photo to ensure correct reattachment. - 6
Install the replacement capacitor
Connect each wire to the corresponding terminal on the new capacitor the same way they were on the old one. Secure the capacitor in its mounting bracket and reassemble the housing.
Tip: Ensure terminals are snug and wires are not stressed or pinched. - 7
Test operation and safety check
Re-energize the system, observe for smooth start and operation, and listen for unusual noises. If the system doesn’t operate correctly, recheck wiring and ratings before calling a tech.
Tip: If you smell burning or see smoke, power down immediately and seek professional help.
Your Questions Answered
What are common signs that a heat pump capacitor needs replacement?
Common signs include short cycling, hard starting, slower cooling or heating, and unusual noises from the outdoor unit. If these occur, a faulty capacitor is a frequent suspect and should be checked before other components.
Watch for short cycling, hard starts, or odd noises that suggest a capacitor may be failing.
Can I replace a heat pump capacitor myself?
Only if you have proper electrical safety knowledge and you can identify the exact rating. Incorrect replacement can damage the compressor or void warranties. When in doubt, hire a licensed HVAC technician.
You can if you’re comfortable with electrical work and know the exact capacitor rating; otherwise, hire a pro.
How do I read capacitor ratings on the label?
The label shows the microfarads (µF) and the voltage. Use the same µF and voltage as the original part, and ensure the polarity (if any) is correct for non-polarized caps.
Look for the µF and voltage on the label and replace with the same ratings.
What tools do I need for replacement?
You’ll need a non-contact voltage tester, a multimeter, insulated screwdrivers, protective gloves, and the replacement capacitor. Keep the work area dry and organized.
Grab a tester, a multimeter, screwdrivers, gloves, and the replacement cap.
Is it safe to discharge a capacitor?
Discharging is essential to avoid shocks. Use an appropriate discharge method per the capacitor type and never bridge live terminals with your body.
Yes, but only with proper tools and procedure to avoid shocks.
How long does replacement typically take?
Most replacements take between 20 and 60 minutes depending on access and familiarity with the unit. Plan for about an hour in typical outdoor installations.
Usually under an hour if you have the parts ready.
Watch Video
Top Takeaways
- Identify symptoms early to prevent compressor damage
- Match capacitor µF and voltage to OEM specs
- Power off and discharge before handling capacitors
- Test unit after replacement to confirm proper operation
