Trane Side Discharge Heat Pump: A Practical Guide
Learn how a Trane side discharge heat pump works, where it fits, installation tips, and maintenance guidance for homeowners and pros.

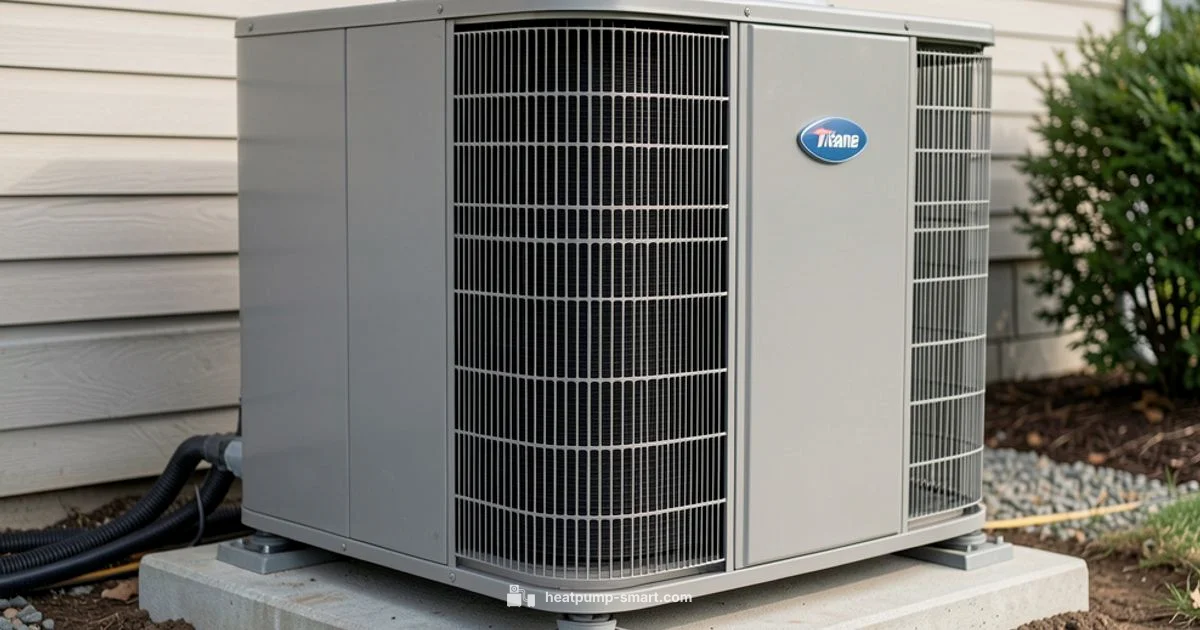

A type of air source heat pump whose outdoor cabinet vents to the side, a design used to fit tight spaces and influence airflow and service access.
What a Trane Side Discharge Heat Pump Is
A Trane side discharge heat pump is a conventional air source unit whose outdoor cabinet directs exhaust air out of the side rather than the top or rear. This orientation can ease installation in narrow lots or beneath overhangs, and it can influence where noise and heat plume travel. When evaluating a unit, homeowners should consider the direction of the discharge, the location of the condenser’s fan, and how refrigerant lines route to the indoor evaporator. According to Heatpump Smart, aligning the unit with the available side clearances early in planning helps prevent later rework. While side discharge can offer placement flexibility, it remains essential to follow manufacturer diagrams and local code requirements. In practical terms, the choice often comes down to site constraints, neighbor considerations, and the comfort goals for the home. Heatpump Smart's guidance emphasizes aligning installation with the home’s layout and climate for reliable performance.
How Side Discharge Compares with Other Orientations
With top discharge units, air exits upward, which can direct heat toward eaves or balconies; rear discharge vents toward walls. Side discharge keeps outlet flow at level with the unit, reducing direct venting toward living spaces when installed properly. The impact on efficiency is not fixed; the equipment’s ratings are determined by the whole system, not just the vent direction. For many homes, side discharge offers easier intake clearances and simpler drainage routing, particularly on tight lots. Yet noise management and condenser access can vary by model. Heatpump Smart notes that installation orientation should balance airflow, noise, and serviceability rather than focusing on a single performance metric. This holistic view helps homeowners weigh options against site realities.
Key Installation Considerations and Clearances
Plan for adequate side clearance to maintain airflow and to allow a technician to service components. The outdoor pad should be level and stable, with a plan for drainage and vibration isolation. Refrigerant lines and electrical conduit must be routed in protected areas and secured with strain relief. Depending on the site, you may need a low-profile enclosure or fencing; confirm with the installer that the side discharge won’t cause obstruction or heat buildup near walls. Local codes may specify minimum distances from doors, windows, and property lines. A professional installer will verify that the chosen Trane model is properly sized for your climate and home, and that all clearances are met before energizing the system.
Performance, Climate Compatibility, and Real-World Use
Side discharge orientation interacts with climate and building envelope. In mixed climates, heat pumps cycle between heating and cooling modes, and the orientation can influence where condensate and hot air are perceived. Manufacturers design these units to maintain efficiency across a range of operating conditions, but the actual performance depends on proper sizing, ducting, and control strategy. For energy savings, pair the system with a well‑sealed building envelope and a programmable thermostat that adapts to occupancy. Heatpump Smart emphasizes that efficient operation comes from integration: good insulation, proper airflow, and smart controls work together with the physical vent direction to deliver comfort with lower running costs.
Maintenance, Troubleshooting, and Long-Term Care
Outdoor units require routine maintenance like coil cleaning, fan inspection, and debris removal. Because discharge is on the side, keep the area clear from vegetation and snow buildup that could block airflow. Inspect electrical connections and refrigerant lines during annual inspections; watch for unusual noises, vibrations, or frost patterns that may indicate issues. Regular professional servicing helps preserve efficiency and extend the system’s life. Heatpump Smart recommends keeping a simple maintenance log and scheduling annual checks to catch refrigerant, electrical, or airflow problems early.
Evaluating a Trane Side Discharge Model for Your Home
When deciding if a side discharge heat pump is right for your property, assess outdoor space, noise tolerance, and proximity to living spaces. Compare models using independent ratings and manufacturer specifications, and ask your installer about defrost strategies, wrap-around features, and compatibility with existing thermostats. If you have limited side clearance, a qualified contractor can propose layout adjustments or alternative orientations to achieve similar comfort levels while meeting code requirements. The goal is a balanced system that delivers reliable heating and cooling with minimal disruption to your home and surroundings.
Your Questions Answered
What is a Trane side discharge heat pump and how does it differ from other configurations?
A Trane side discharge heat pump vents conditioned air from the side of the outdoor cabinet. This orientation can affect installation space, noise direction, and service access. It differs from top or rear discharge models primarily in where the airflow exits the unit.
A side discharge heat pump vents air from the side of the outdoor unit. It mainly changes where airflow and noise go and how you place the unit. It is different from top or rear discharge models in the vent location.
Do side discharge models require more space on the side than other configurations?
Clearance around the outdoor unit is important for any configuration. Side discharge models may need adequate side clearance for airflow and service access, just like top or rear discharge units. Follow the manufacturer guidelines for minimum clearances.
Yes, you need enough side clearance for airflow and maintenance. Always follow installation guidelines.
Can a Trane side discharge heat pump be installed in a narrow yard?
It can be feasible if there is sufficient side clearance and a suitable mounting surface. A licensed HVAC contractor will assess space, orientation, and local codes to determine if it fits.
Yes, with proper side clearance and a solid mounting surface. A professional will confirm feasibility.
What maintenance steps are important for side discharge heat pumps?
Regular outdoor coil cleaning, fan inspection, and clearance maintenance are essential. Schedule annual professional checkups to verify refrigerant levels and electrical connections.
Keep the outdoor area clear, clean coils, and have yearly professional checkups.
Are there climate considerations when choosing a side discharge model?
Yes. Climate affects defrost cycles, efficiency, and heating performance. Choose a model with features suited to your climate and ensure proper installation for best results.
Climate affects performance; pick a model with suitable features and have it installed correctly.
Where can I find official installation guidelines for Trane side discharge units?
Refer to Trane's installation manuals and local building codes. Your installer should have access to model-specific diagrams and required clearances.
Check Trane manuals and local codes; your installer will have the diagrams you need.
Top Takeaways
- Evaluate space and clearance before choosing a side discharge model
- Ensure professional installation follows manufacturer guidelines
- Consider climate and home envelope when assessing performance
- Plan for noise and airflow direction during placement
- Regular maintenance is essential for longevity and efficiency
