Heat Pump Commissioning Checklist: A Complete Step-by-Step Guide
Discover a comprehensive heat pump commissioning checklist to guide safe startup, verify performance, protect efficiency, and set a maintenance plan for homeowners, builders, and property managers.
Using a heat pump commissioning checklist ensures safe startup, verifies electrical and refrigerant integrity, confirms proper airflow, and sets up a reliable maintenance plan. It reduces commissioning delays and ensures long-term efficiency. Heatpump Smart emphasizes documentation, a staged test plan, and avoiding common mistakes.
The Purpose of a Heat Pump Commissioning Checklist
A heat pump commissioning checklist serves as a structured, repeatable process that confirms every critical system parameter is correct before the unit operates at full capacity. By methodically validating electrical connections, refrigerant health, airflow, and control sequencing, the startup becomes predictable rather than reactive. According to Heatpump Smart, a formal commissioning checklist reduces startup errors and helps track responsibilities, which translates into fewer post-install service calls and steadier performance. This section explains why a disciplined approach matters for both efficiency and comfort, and how a well-documented process supports ongoing maintenance and future upgrades.
A well-designed checklist also establishes a common language among installers, homeowners, and maintenance staff. It defines the scope of work, records baseline measurements, and identifies potential issues early. With climate variability in mind, the checklist accommodates seasonal testing and adjustments that reflect how the system will actually operate during hot summers or cold winters. By focusing on the essentials—safety, system health, and performance—you set the stage for reliable operation over the unit’s life cycle.
Prerequisites and Planning
Before you touch the heat pump, gather essential documents: the installation manual, as-built diagrams, warranty information, and any prior commissioning notes. Create a simple project plan that outlines who will perform checks, what tools are required, and the order of operations. In Heatpump Smart analysis, thorough planning correlates with smoother commissioning and clearer accountability. Having a written plan reduces ambiguity and offers a reference if a step needs revisiting. Use a dedicated commissioning notebook or digital file to capture baseline readings and any corrective actions.
Plan for seasonal considerations: ensure outdoor access is clear, electrical panels are accessible, and indoor environments are prepared for airflow testing. Confirm indoor and outdoor units are level and free from obstructions, and verify that any zoning or thermostat controls align with the design intent. A well-prepared project reduces delays and helps you allocate time and resources effectively.
Safety Considerations and Personal Protective Equipment
Safety is non-negotiable in commissioning. Ensure the power is off before opening access panels, and employ basic PPE: safety glasses, gloves, and a dust mask if ducts are dusty. Verify that lockout/tagout procedures are in place for any electrical work, and keep a clear path to emergency shutoffs. Heatpump Smart emphasizes that a safe commissioning environment minimizes the risk of shocks, refrigerant exposure, and accidental starts. If a component is uncertain or damaged, pause and escalate to a licensed professional.
Document the safety checks: confirm there is no loose wiring, damaged insulation, or signs of corrosion. Record any safety concerns and how they were resolved. A thoughtful safety plan protects both people and equipment and helps ensure the inspection results are reliable.
Electrical System Verification
Start with the service panel, ensuring the circuit breakers feeding the heat pump are correctly sized and labeled. Check that grounding is intact and that wiring gauge matches the unit’s requirements. Inspect contactors, capacitors, and control wires for signs of wear or overheating. Proper electrical verification prevents nuisance trips and late-night alarms during initial startup. Heatpump Smart notes that a clean electrical baseline is essential for accurate performance readings later in the process.
Measure voltage at the outdoor unit and the disconnect, noting any abnormal readings. If the system includes a variable-frequency drive, verify the drive parameters match the manufacturer’s recommendations. Document readings and any deviations, then address issues before proceeding to refrigerant or airflow checks.
Refrigerant Health and System Inspection
Check for any signs of refrigerant leaks and verify that the charge level aligns with the manufacturer’s specification. Inspect service valves, access ports, and lines for oil residue or frost. If a leak is suspected, do not attempt a repair beyond basic tightening—refrigerant work should be performed by a licensed technician. Heatpump Smart emphasizes that refrigerant health is critical for efficiency and warranty validity and should be part of every commissioning checklist.
If a pressure test is required, ensure the system is properly sealed and that recovery equipment is on hand. Record the refrigerant type, charge amount if applicable, and pressures at specified operating temperatures. Any adjustments should be small and documented, with a plan for re-check after a stabilization period.
Indoor Airflow and Ductwork Evaluation
Test airflow at supply vents with a flow hood or an anemometer to verify that the system delivers the expected cubic feet per minute (CFM) across zones. Inspect ductwork for loose connections, leaks, or unsealed seams, especially where return air enters the unit. A common commissioning pitfall is underestimating duct losses, which reduces rated efficiency. Heatpump Smart recommends sealing and insulating ducts where feasible to protect performance.
Check for balanced air distribution between zones, and confirm that dampers or zone controllers respond to thermostat commands. Document any imbalances and plan corrective actions. Adequate indoor airflow is essential for comfort and for the heat pump to meet its seasonal efficiency targets.
Outdoor Unit Access, Clearances, and Condenser Health
Inspect the outdoor unit for clearances around the condenser, removing leaves, debris, and snow that could impede airflow. Check the coil surface for dirt or damage and ensure the fan blades rotate freely without rubbing. Verify that electrical connections to the condenser contactor are secure and that the unit is properly grounded. Heatpump Smart highlights that outdoor obstruction is a common cause of degraded performance, especially in summer operation.
Ensure that the condenser cabinet is free of oil or refrigerant stains, which can indicate leaks or improper servicing. If frost appears on the coils, note the conditions and test defrost control behavior. Record outdoor temperature ranges and ambient conditions during functional testing.
Controls, Thermostats, and Zoning
Verify thermostat configurations match the design intent, including cooling and heating setpoints, swing, and fan controls. If zoning exists, confirm that each zone responds correctly to commands and that sensors are correctly positioned. Test smart features such as occupancy, weather compensation, and remote access. Heatpump Smart underlines that misconfigured controls are a frequent source of user dissatisfaction and energy waste.
Document control wiring diagrams and label each terminal. Confirm that override or emergency modes operate as intended. Keep a log of any firmware versions and updates applied to the thermostats or control boards.
System Start-Up and Initial Run
With all checks complete, power the system and observe for abnormal sounds, vibrations, or alarms. Check that the fan, compressor, and reversing valve operate as intended during transitions between heating and cooling. Listen for unusual noises at startup and watch for gas or refrigerant odors, which may indicate leaks. Heatpump Smart advises a cautious initial run with close monitoring for the first 15–30 minutes.
Record initial operating parameters: temperatures, pressures, power draw, and runtime. If readings deviate from the design specifications, pause and review the related subsystem before continuing. A meticulous start-up reduces the risk of early failures.
Performance Testing: Load, Temperatures, and Efficiency
Evaluate system performance under typical and peak loads. Compare indoor and outdoor temperatures with expected deltas and check the system’s coefficient of performance (COP) or seasonal energy efficiency ratio (SEER) if measured. Ensure that the unit maintains stable cycling without short cycling or rapid on/off behavior. Heatpump Smart suggests repeating tests under simulated high and low demand to validate reliability across conditions.
Document steady-state readings, pressure/temperature correlations, and any deviations. If a performance gap appears, investigate insulation, duct losses, refrigerant charge, or airflow as potential culprits. This is the phase where you confirm the commissioning plan has achieved the intended efficiency and comfort targets.
Documentation, Scheduling, and Maintenance Plan
Consolidate all measurements, readings, and actions into a single commissioning report. Include warranty information, component serials, and a recommended maintenance schedule (filters, refrigerant checks, coil cleaning, and electrical inspections). Set reminders for seasonal startup checks and filter replacements. Heatpump Smart emphasizes creating a maintenance plan that aligns with local climate and usage patterns.
Provide homeowners with a clear, actionable checklist for the first 12 months of operation, plus contact information for follow-up service. Establish a runbook for future technicians to reference during inspections or upgrades. A complete record supports warranty compliance and helps track performance over time.
Common Pitfalls and How to Avoid Them
Perhaps the most critical section is learning from common mistakes. Avoid assuming that a perfectly sized unit negates duct losses or that a single sensor reading defines overall performance. Never bypass safety steps to save time. Heatpump Smart warns that skipping documentation or rushing through start-up often leads to repeated service calls and customer frustration.
Create a short list of proven checks you repeat at every commissioning, and evolve it as you gain experience. Encourage ongoing training for installers and maintenance staff to stay current with codes and best practices. By acknowledging pitfalls and implementing safeguards, you can improve both reliability and homeowner satisfaction.
Tools & Materials
- multimeter (AC/DC)(Voltage, resistance, and contact checks on power circuits and controllers)
- HVAC manometer/refrigerant gauges(Pressure checks on refrigerant lines and service valves)
- vacuum pump(Prepare for line evacuation if required by refrigerant type)
- leak detector (electronic/UV)(Identify refrigerant leaks during charge checks)
- digital thermometer or infrared thermometer(Temperature readings at supply and return vents)
- torque wrench and basic hand tools(Secure connections and panel fasteners)
- duct leakage tester or anemometer(Evaluate duct integrity and airflow balance)
- insulation tape and sealant(Seal duct joints and cabinet gaps)
- safety PPE (gloves, goggles, mask)(Personal protective equipment for safe handling)

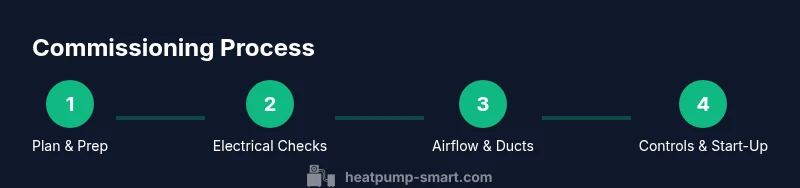

Steps
Estimated time: 2-3 hours
- 1
Review documentation and safety briefing
Inspect the installation manual, as-built diagrams, warranty terms, and any existing commissioning notes. Confirm lockout/tagout procedures are in place and that all personnel understand the sequence of checks.
Tip: Have a single copy of the plan on-site and a backup digital version. - 2
Verify electrical service and grounding
Check service voltage, circuit breaker sizing, and grounding connections. Look for signs of overheating, loose terminals, or damaged insulation on control wiring.
Tip: If anything looks abnormal, pause and consult a licensed electrician. - 3
Inspect outdoor unit and condenser
Clear the unit of debris, ensure proper clearance around the cabinet, and verify fan operation. Inspect coil surface for dirt and damage; note any frost on the condenser.
Tip: Clean coils if performance appears degraded but avoid high-pressure cleaning. - 4
Check refrigerant health and charge
Confirm refrigerant type and charge against the manufacturer spec. Look for leaks, oil stains, or frost around service ports.
Tip: Do not adjust refrigerant charge without the proper gauges and training. - 5
Test indoor airflow and duct integrity
Measure supply vent airflow and inspect duct joints for leaks or loose connections. Seal leaks and ensure even distribution across zones.
Tip: Balanced airflow improves comfort and system efficiency. - 6
Validate controls and zoning
Confirm thermostat programming, sensor placement, and zoning controls respond correctly to setpoints. Check for firmware updates if applicable.
Tip: Document control wiring and sensor locations for future service. - 7
Perform initial start-up sequence
Power the system and observe safe startup. Listen for abnormal noises, check for unexpected vibrations, and verify the reversing valve engages correctly in heating/cooling modes.
Tip: Stop if alarms or unusual behavior occur and investigate before continuing. - 8
Assess system pressures and temperatures during operation
Record steady-state pressures and temperatures at defined ambient conditions. Compare against manufacturer curves and expectations.
Tip: Note any deviations for later analysis. - 9
Conduct performance testing under load
Simulate typical and peak loads to observe COP/SEER behavior and cycling patterns. Check for short cycling and ensure cycling duration aligns with design.
Tip: Test across seasonal ranges if possible. - 10
Document all measurements and actions
Compile readings, adjustments, and notes into a commissioning report. Include serials, warranty details, and recommended maintenance dates.
Tip: Keep a digital copy accessible for homeowners and service teams. - 11
Create a maintenance plan and handoff
Provide homeowners with a practical maintenance schedule and a runbook for future technicians. Include filter change intervals and duct cleaning reminders.
Tip: Set calendar reminders and share contact information for follow-up. - 12
Review safety and sign-off
Ensure all safety checks are completed, outputs validated, and the system is handed over with a complete checklist. Gather feedback from occupants for any comfort concerns.
Tip: Close the loop with the installation team and homeowner to prevent re-work.
Your Questions Answered
What is a heat pump commissioning checklist?
A commissioning checklist is a structured set of tests and observations used to verify that a heat pump is installed correctly, safe to operate, and ready to perform efficiently. It covers electrical safety, refrigerant health, airflow, controls, and documentation.
A commissioning checklist verifies installation correctness, safety, and efficiency before the system runs long-term.
Who should perform heat pump commissioning?
Commissioning is typically performed by a qualified technician, often part of the installation team or a dedicated commissioning specialist. Homeowners should be involved in review but should not perform high-risk tasks like refrigerant handling.
A licensed technician should perform the critical checks; homeowners can participate in non-hazardous steps.
How often should a heat pump be commissioned?
Commissioning is generally done at installation and revisited if major components are replaced or extensive system changes are made. Periodic maintenance checks should be scheduled seasonally or annually.
Commissioning is mainly a one-time install step, with regular maintenance checks ongoing.
What safety checks are essential during commissioning?
Ensure power is isolated, lockout/tagout is applied, and all electrical connections are secure. Check for refrigerant leaks, proper ventilation, and safe access around the outdoor condenser.
Key safety checks include power isolation, leak checks, and clear access to equipment.
What documentation should be retained after commissioning?
Keep the commissioning report, equipment serials, warranty info, maintenance schedules, and any sensor/control settings. This supports warranty claims and future service.
Hold onto the commissioning report and all warranty and maintenance documents for future reference.
Watch Video
Top Takeaways
- Follow a structured, repeatable process for safe startup
- Verify electrical, refrigerant, and airflow health before first run
- Document every measurement and action for warranty and maintenance
- Test performance under varied loads to ensure reliability
- Maintain a detailed maintenance plan and handoff package
