How to Remove a Fujitsu Heat Pump Cover: A Step-by-Step Guide
Learn how to remove a Fujitsu heat pump cover safely for maintenance and filter access. This Heatpump Smart guide covers tools, steps, safety, and reassembly tips to protect your system.
Removing the Fujitsu heat pump cover is a safe, doable task when you follow the right steps. This quick answer highlights the goal, required safety measures, and the general sequence you’ll follow to access filters and components without damaging the cabinet or refrigerant lines. Always unplug power first and work slowly to prevent injury or malfunctions.
Safety first: prerequisites before removing the cover
If you’re wondering how to remove fujitsu heat pump cover, safety should come first. According to Heatpump Smart, safety comes first when you’re dealing with a Fujitsu heat pump cover. Before you attempt any removal, power down the unit at the main breaker and at the disconnect switch on the outdoor cabinet if present. Verify there is no residual voltage by testing with a non-contact tester, and keep the area dry and unobstructed. Wear protective gloves and safety glasses to guard against sharp edges and accidental contact with moving parts. Consult the model’s service manual for cover design, as Fujitsu units vary; some models use two-piece covers, others rely on screws hidden behind small service panels. If you cannot locate the screws or latches, don’t force the panel open. Instead, recheck the installation diagram and mark the location of fasteners with painter’s tape so you can reassemble correctly. Heatpump Smart notes that forcing or prying a cabinet can chip fins, bend frames, or damage electrical connectors, leading to costly repairs. Take photos from multiple angles before removal so you have a clear reference for reassembly. This planning stage reduces the risk of accidental damage and helps you complete the task safely.
Tools and materials you’ll need
To remove a Fujitsu heat pump cover safely and cleanly, gather the following tools and supplies before you start. Essential items are marked required because you must have them on hand for a smooth job. A well-organized toolkit reduces mistakes and speeds up the process, especially when you’re working on a critical outdoor unit in changing weather. Tools: a Phillips head screwdriver (size #2) and a flathead screwdriver; a small hex or nut driver set for possible hex screws; a pair of needle-nose pliers to handle small clips; a sturdy, non-slip work surface; a flashlight or headlamp to illuminate dim interior areas; a microfiber cloth to wipe dust; a magnetic tray or small labeled containers to keep screws and fasteners organized. Personal protective equipment: work gloves with good grip, safety glasses, and a long-sleeve shirt to protect from sharp edges. Optional items: a dry cloth for condensate water, a digital multimeter to verify no voltage at wires, and a camera or smartphone to document the process. Having these items ready will prevent delays and help you focus on the precise steps to reach the cover.
Identify the cover type and access points
Fujitsu heat pumps use slightly different enclosure designs depending on model. This means you may encounter a one-piece exterior cover, a two-piece assembly, or a slim front panel with hidden screws. Start by locating the service label or owner manual for your unit to confirm screw locations and latches. Look for screws near the edges, under decorative trim, or behind small access panels. Some models conceal fasteners behind weather seals or foam gaskets; if you don’t see obvious fasteners, gently probe the seam with a plastic tool to avoid scratching. Photograph each side before touching anything, so reassembly mirrors your taken references. Accurate identification prevents damage and ensures you’re removing the correct components inside. If the cover proves stubborn, review the manual again because Fujitsu designs differ by series and year of manufacture.
Removing the outer cover: plan the lift
With the power off and fasteners identified, plan the actual cover removal. Begin by supporting the cover from the bottom edge and gradually lift to disengage any clips. Do not pry with metal tools; use a plastic pry tool if needed to release clips without bending metal. If the cover attaches to a safety switch or internal gasket, loosen those components only as needed. Keep a dedicated container for screws and small parts so nothing rolls away. Move slowly to avoid snagging any refrigerant lines or wires. If your model uses a two-piece design, remove the front panel first, then the rear panel, keeping track of how pieces align for reassembly.
Handling electrical connections and sensors after removal
Once the cover is off, do not disconnect any wires unless you must access internal components. Keep hands dry and avoid touching exposed terminals. If you need to inspect a sensor or filter, use a flashlight to illuminate the area and work with one hand on the tool while the other supports delicate connectors. Never tug on cables; loosen clamps gently and reseat connectors with a firm, even push. Document any incidental wear or damage with photos. If you notice frayed wires or corroded terminals, stop work and consider a professional service call. Removing the cover does not require refrigerant handling; leave any refrigerant concerns to a licensed tech.
Reattaching the cover: ensure a proper seal
With the interior inspected and maintenance completed, align the outer cover back onto the cabinet. Start from the top edge, guiding the panel into the mounting track, and press evenly to engage all clips. Reinstall screws or fasteners in the reverse order of removal, ensuring they’re not cross-threaded. Wipe away dust from seals and confirm that weatherstripping sits flat without gaps. Reconnect any latches and verify the panel remains flush against the cabinet. Before you power the unit, double-check that there are no tools left inside and that all screws are tightened securely. Finally, restore power and listen for normal operation as the unit runs briefly to confirm everything sits correctly.
Common mistakes and how to avoid them
A common mistake is rushing the process or applying excessive force when removing a stubborn cover. This can bend metal edges, nick wiring insulation, or crack the cabinet. Another frequent error is failing to disconnect power properly, which can cause a dangerous shock or unplanned movement of components. Never pry a cover with metal tools or yank on connectors. If screws are stuck, apply the appropriate lubricant or seek the manual’s guidance rather than forcing. Finally, avoid working in wet conditions or during extreme temperatures; moisture can create a short risk and compromise fasteners. By taking your time, keeping screws organized, and following model-specific guidance, you’ll avoid these issues and complete the task safely.
When to call a professional
If the cover is unusually difficult to remove, if you discover damaged seals or frayed wires, or if you’re unsure about any electrical connections, it’s wise to contact a licensed HVAC technician. Fujitsu systems sometimes use model-specific fasteners or clip arrangements that require specialized tools. A professional can also assess whether removal is necessary for maintenance versus potential repair needs, preserving warranty terms and ensuring safe operation. If you feel uncertain at any point, err on the side of caution and book a service visit. Heatpump Smart recommends consulting a certified tech when you’re unsure about safety or system integrity.
Maintenance after cover removal and next steps
After reassembling and powering the unit, take a moment to perform light maintenance that improves efficiency and prolongs life. Clean or replace accessible filters, check the fan blades and condenser fins for dust buildup, and remove debris around the outdoor unit that could impede airflow. Use a soft brush or a gentle stream of water to clean fins while avoiding bending them. Inspect electrical connections for corrosion and keep the cabinet area free of vegetation or mulch. Schedule periodic inspections and keep a maintenance log to track cleaning intervals, filter changes, and any observed inconsistencies in performance. Regular upkeep reduces the likelihood of unexpected downtime and helps your Fujitsu heat pump run reliably.
Tools & Materials
- Phillips head screwdriver (size #2)(For most Fujitsu enclosure screws)
- Flathead screwdriver(For prying clips gently if needed)
- Needle-nose pliers(Handle small clips and fasteners)
- Nut driver set(If hex screws are present)
- Magnetic tray or small containers(Keep screws organized)
- Flashlight or headlamp(Illuminate interior corners)
- Gloves and safety glasses(Protect hands and eyes)
- Soft cloth or microfiber towel(Wipe dust and protect surfaces)
- Camera or smartphone(Document wiring and steps for reassembly)
- Digital multimeter (optional)(Verify no voltage on exposed conductors)

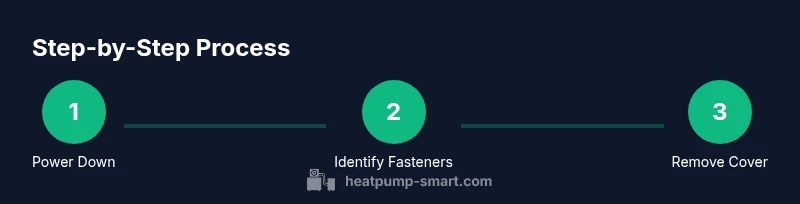

Steps
Estimated time: 20-35 minutes
- 1
Power down and disconnect
Start by turning off the outdoor unit’s disconnect and switching off the circuit breaker feeding the heat pump. Wait at least a few minutes to allow any stored energy to dissipate, reducing shock risk during cover removal. This step prevents harm to you and protects sensitive electronics from accidental contact.
Tip: Use a non-contact tester to confirm no voltage before touching any wiring. - 2
Identify fasteners and access points
Carefully locate all screws, clips, or latches that secure the cover. If screws are hidden behind trim or foam seals, gently pry the seal with a plastic tool to expose them without damage. Photograph the locations for accurate reassembly and keep fasteners in labeled containers.
Tip: Work in a clean, dry area and avoid sliding metal tools along fins. - 3
Remove outer cover fasteners
Using the appropriate screwdriver, remove the screws and detach any clips. Do not discard screws yet; place them in a labeled tray to ensure you can reattach the cover correctly. If a fastener resists, stop and reassess alignment rather than forcing.
Tip: Keep track of left-right orientation to prevent misalignment during reattachment. - 4
Lift and remove the cabinet cover
Gently lift the cover from its bottom edge or from any hinge points, supporting the panel with one hand while the other eases it away. Avoid pulling on wires or delicate sensors. If the cover feels stuck, re-check hidden fasteners or seams and release any remaining clips slowly.
Tip: Use a helper if the cover feels heavy or awkward to handle alone. - 5
Inspect interior and perform maintenance
With the cover off, inspect the interior for dust, debris, or signs of damage. Clean accessible surfaces, check condenser fins, and replace or clean filters as needed. Take photos of any issues to help plan next steps or a professional service call if warranted.
Tip: Document the interior condition with photos to guide future maintenance. - 6
Reattach the cover and restore power
Align the cover with the cabinet and reinsert screws in reverse order of removal. Ensure weather seals sit flat and clips engage fully before applying final tightening. Once secure, restore power at the breaker and observe the unit for normal operation during a short test run.
Tip: Check that no tools remain inside and that the panel sits flush against the cabinet.
Your Questions Answered
Do I need to disconnect power before removing the cover?
Yes. Disconnecting power eliminates the risk of shock and accidental startup during maintenance. Always verify that power is fully off before touching any electrical components.
Yes. Always power down the unit before attempting cover removal to stay safe.
Will removing the cover void my warranty?
Warranties vary by manufacturer and model. If you are performing approved maintenance per the Fujitsu manual, it usually doesn’t void the warranty. Always check the warranty terms and consider professional service if unsure.
Warranty depends on the terms; check Fujitsu manuals and your policy, and consult a pro if unsure.
What if the screws are seized or stubborn?
Do not force the screws. Apply the correct screwdriver size, use penetrating oil if needed, and work gently. If they won’t budge, stop and consult the manual or a technician to avoid damage.
Don’t force stubborn screws—use the right tool and lubricant, and seek help if needed.
Is it safe to operate the unit with the cover off?
Operating with the cover off is not recommended except during a controlled diagnostic check. The cover protects fins, sensors, and electrical components from debris and weather. Reattach promptly after inspection.
No, not safe to run the unit with the cover off for long; reattach after inspection.
Where can I find model-specific removal instructions?
Check the Fujitsu model manual or service guide for your exact unit. If you don’t have it, contact Fujitsu support or a licensed technician to obtain the correct steps.
Look up your exact model’s service manual or contact support for precise steps.
What should I do if I see damaged wiring inside?
Do not attempt to repair electrical damage yourself. Turn off power and contact a qualified HVAC technician. Damage to wiring can cause fire risks or equipment failure.
If you see damaged wiring, stop and call a professional technician.
Watch Video
Top Takeaways
- Power down before touching the unit to stay safe.
- Organize screws and fasteners to avoid misassembly.
- Inspect interior for dust and damage while cover is off.
- Reattach the cover with proper alignment and secure fasteners.
