Installation of Heat Pump: A Step-by-Step Guide
A complete how-to on installing a heat pump, covering planning, sizing, preparation, installation, commissioning, and maintenance for efficient home comfort and energy savings.
You will complete a safe, code-compliant installation of a heat pump and have your system ready for commissioning. Key requirements include correct sizing, a stable electrical supply, proper outdoor unit placement, and appropriate duct or water-loop connections. For complex tasks, hire a licensed technician; this guide outlines the steps and safety checks.
Why Installation of Heat Pump Matters for Home Comfort and Efficiency
Heating and cooling account for a large portion of a typical home's energy use. A properly installed heat pump delivers reliable comfort with high efficiency, reducing peak load and cooling bills in the summer as well as winter heating costs. The installation quality directly affects performance, quiet operation, and long-term reliability. According to Heatpump Smart, correct sizing, duct integrity, and refrigerant handling are foundational to achieving steady comfort and energy savings. Homeowners should plan for a system that matches their climate, insulation, and occupancy patterns, not just the cheapest upfront option. A well-executed installation also supports better control through smart thermostats and zoning, which can further amplify energy savings and comfort levels.
Planning Your Installation: Assessing Needs, Budget, and Permits
A thoughtful plan sets the stage for a smooth installation. Start with a home energy audit or a professional load calculation (often a Manual J) to determine the right size. Evaluate existing ductwork for leaks, blockages, or mismatches, and decide whether you will rely on existing ducts or need a ductless/mini-split approach. Consider the location of the outdoor unit, noise concerns, and airflow around the condenser. Budget for equipment, permits, potential ductwork adjustments, and a commissioning visit. Local building codes may require permits and inspections, and some regions mandate refrigerant handling by certified technicians. Heatpump Smart analysis shows that homes with poor duct designs or undersized electrical services are more likely to experience comfort complaints and higher energy use after installation. Document all decisions for warranty and future maintenance.
Sizing and Selecting the Right Heat Pump
Choosing the correct heat pump size is essential for efficiency and comfort. A unit that is too large will short-cycle, waste energy, and create uneven temperatures; a unit that is too small will struggle in peak conditions. Look for a model with a suitable seasonal energy efficiency ratio (SEER) and heating seasonal performance factor (HSPF), and consider inverter-driven compressors for better part-load performance. Pay attention to the outdoor unit’s capacity relative to your indoor blower and duct design. Heatpump Smart notes that variable-speed, dual-stage, or heat-pump-with-backup resistance heating options can improve performance in extreme climates, but only when properly matched to the home’s load and ducting.
Preparing Your Space: Ductwork, Location, Electrical, and Hydronics
Prepare both the indoor and outdoor environments before installing. Indoor preparation includes ensuring the air-handling unit location allows for easy duct connections, clearances, and accessible thermostat wiring. Outdoor placement should minimize noise impact and maintain adequate airflow; ensure a solid pad or mounting surface and proper drainage. Electrical work must meet local codes and typically requires a dedicated circuit with appropriate breaker sizing and a dedicated disconnect. If you’re using a geothermal loop or hydronic system, verify loop integrity and compatible heat pump wiring. Duct sealing and insulation are critical to prevent air leaks that undermine efficiency.
The Installation Process: Step-by-Step Overview
The installation involves coordinated electrical, refrigerant, and airflow work. Typical steps include site preparation, mounting the outdoor condenser on a level pad, routing and securing refrigerant line sets, making electrical connections, and integrating the indoor air handler or hydro-thermal components. A vacuum test is performed to ensure there are no leaks in the refrigerant system, followed by refrigerant charging to the manufacturer’s specification. Finally, the system is started and programmed for the home’s thermostat and zoning. Throughout, maintain adherence to safety standards and local codes. A commissioning checklist helps ensure the system operates within design parameters and delivers the expected comfort and efficiency.
Post-Installation: Testing, Commissioning, and Seasonal Checks
After installation, commissioning verifies that the system meets performance specifications. Check refrigerant pressures, electrical connections, and thermostat integration. Validate defrost cycles, airflow, and heat delivery at all setpoints. Run a full load test across heating and cooling modes, and inspect for unusual noise or vibration. Provide the homeowner with maintenance instructions, savings expectations, and a seasonal maintenance plan. Schedule a follow-up service after the first few weeks to catch any settling issues and confirm warranty coverage. Regular filter changes, coil cleaning, and annual check-ups keep systems running at peak efficiency.
Common Pitfalls and How to Avoid Them
Common pitfalls include underestimating ductwork needs, selecting an undersized or oversized unit, and neglecting proper refrigerant charging and leak testing. Poor outdoor unit clearance or blocked return air can degrade performance and shorten equipment life. Failing to obtain required permits or skipping commissioning can void warranties and complicate future service. Ensure contractors perform a full load calculation, duct sealing, electrical wiring to code, and a thorough start-up check. Clarify warranty terms, maintenance responsibilities, and the expected service life of components.
Cost Considerations, Rebates, and Financing
Cost is influenced by unit efficiency, size, ductwork needs, and installation complexity. Seek transparent quotes that separate equipment costs, labor, permits, and any retrofits. In many regions, rebates and financing options can improve payback periods by reducing upfront costs. Energy savings from a properly sized heat pump can be substantial over the system’s lifespan, especially when paired with smart thermostats and good insulation. When evaluating options, compare total cost of ownership rather than upfront price alone, and verify contractor qualifications and warranty terms. Heatpump Smart recommends prioritizing long-term value and serviceability over the lowest initial price.
Authority and Resources for Installation of Heat Pump
For authoritative guidance on installation best practices and standards, refer to these sources:
- https://www.energy.gov/energysaver/heat-pumps
- https://www.energy.gov/eere/buildings/articles/heat-pump-systems
- https://www.energy Star.gov/products/heating-cooling/heat-pumps
These resources cover system design, efficiency considerations, and safety guidelines to support a compliant and efficient installation.
Tools & Materials
- Measuring tape(At least 25 ft / 8 m to layout ductwork and outdoor unit placement)
- Level and hammer drill(For mounting pad and brackets; ensure level surface)
- Cordless drill and screwdriver bits(Secure mounting hardware and electrical connections)
- Vacuum pump with micron gauge(Leak-testing the refrigerant line set)
- Manifold gauge set(Check refrigerant pressures during charging)
- Pipe wrench and refrigeration service tools(Connect/disconnect line sets and fittings)
- Electrical meter and PPE (gloves, goggles)(Safe electrical work and compliance with code)
- Thermostat with compatibility for heat pump mode(Program to control heating/cooling and fan)
- Duct sealing material (mastic or foil tape)(Prevent leaks and improve efficiency)
- Outdoor condenser pad or mounting kit(Provide stable, level support and drainage)

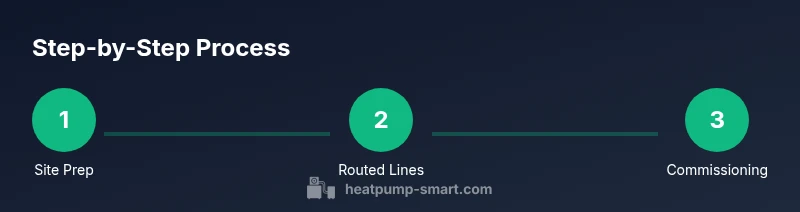

Steps
Estimated time: 4-8 hours (depending on existing ductwork and electrical readiness)
- 1
Conduct site assessment and obtain permits
Review space, assess ductwork, and confirm permit requirements with local authorities. Gather equipment specifications and ensure access for installation. This initial step reduces surprises during execution and aligns with code requirements.
Tip: Document existing duct sizes and electrical capacity before ordering equipment. - 2
Prepare the outdoor location and mounting
Place a level, solid pad for the condenser; ensure clearance around the unit for airflow and maintenance. Verify drainage away from foundations and check local noise limits.
Tip: Ensure ground is stable enough to prevent vibration and movement over time. - 3
Mount the indoor unit and route line sets
Install the indoor air handler or water-loop interface in the designated location; carefully route refrigerant lines and condensate drains following manufacturer guidelines. Protect lines from physical damage.
Tip: Use proper strain relief and minimize line-set bends to reduce pressure losses. - 4
Make electrical connections and protect circuits
Run dedicated electrical circuits per code, install disconnects, and secure wiring to prevent interference with moving parts. Verify grounding and capacitor compatibility where applicable.
Tip: Use a licensed electrician if unsure about code requirements. - 5
Charge refrigerant and perform leak testing
Seal all joints, evacuate the system with a vacuum pump, then charge to the manufacturer’s specification. Perform a refrigerant leak test and verify seals on line sets.
Tip: Record initial pressures and refrigerant type for future maintenance. - 6
Commission and test operation
Power up the unit, verify thermostat communication, test heating and cooling, and observe defrost cycles and airflow continuity. Check all safety indicators and fault codes.
Tip: Document operating temperatures and sound levels during start-up.
Your Questions Answered
What permits are required for heat pump installation?
Most installations require a local building permit and a refrigerant handling certification for the installer. Check with your municipality and the contractor to ensure all documents are in order before starting.
You’ll typically need a building permit and a licensed installer for refrigerant work. Confirm requirements with your local authority and contractor.
Who should install a heat pump?
A licensed HVAC technician with experience in heat pumps is recommended. They can ensure correct refrigerant charging, electrical wiring, and code compliance.
A licensed HVAC professional is strongly recommended for this work.
Can I install a heat pump myself?
DIY installation is generally not advised due to refrigerant handling, electrical codes, and warranty implications. If you have specialized training, you may perform some non-pressurized tasks, but professional commissioning is still advised.
DIY is not advised for heat pumps because of safety and warranty concerns.
How long does installation typically take?
Typical installations take several hours to a full day, depending on ducting, electrical upgrades, and site readiness. Complex retrofits or geothermal loops can require more time.
Most installations take a few hours to a day, depending on the site's readiness.
What maintenance is needed after installation?
Schedule annual preventive maintenance, replace or clean filters, inspect duct sealing, and verify thermostat operation. Regular service helps sustain efficiency and extend equipment life.
Keep up with annual maintenance and filter changes to maintain efficiency.
What are signs installation was done poorly?
Unusually high energy bills, weak heating/cooling, frequent cycling, refrigerant leaks, or unusual noises can indicate improper installation or insufficient commissioning. Have a professional inspect if these occur.
Watch for poor performance or unusual noises; have it checked promptly.
Watch Video
Top Takeaways
- Plan size and layout before purchase
- Ensure dedicated electrical supply and permits
- Prioritize duct integrity and air sealing
- Commission the system for peak performance
- Investigate rebates and financing options
